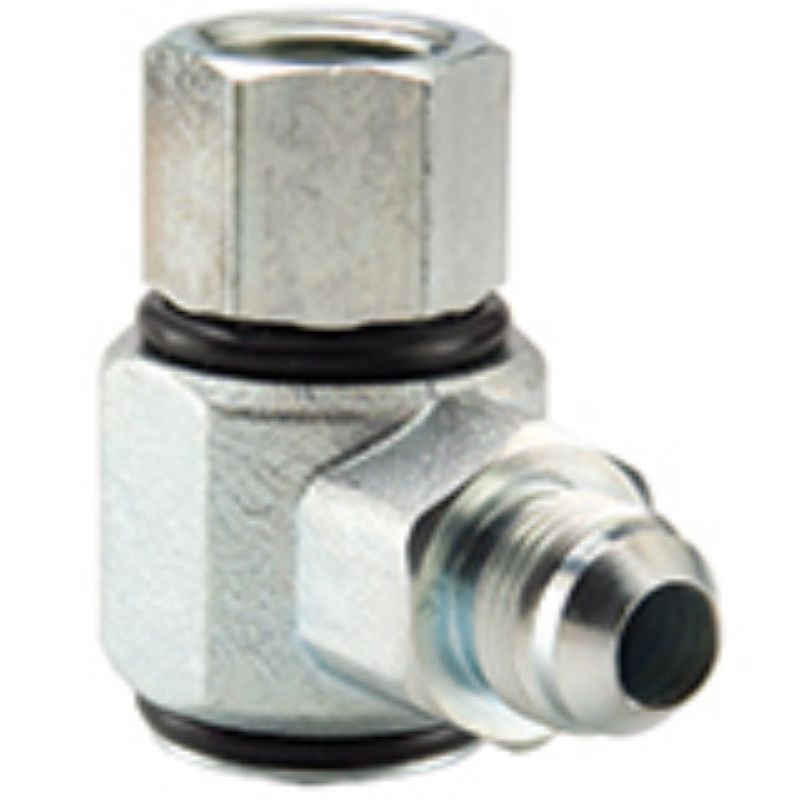

Parker S2203-12-12 - Pressure Balanced, Hydraulic Swivels - S Series

Parker's swivels are designed to eliminate hose twist and torque that may contribute to premature hose failure.

Availability:	Quote Required
Partner Available:	3 In Stock

Brand Parker

Part No. S2203-12-12

$212.74

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Quick Coupling Division
Minimum Operating Temperature	-40 °F	Body Material	Steel
Maximum Operating Temperature	250 °F	Maximum Operating Speed	10 RPM
Configuration	90 degree	Maximum Operating Pressure	3000 psi
Seal Material	Nitrile	Shaft Connection Style	Female NPTF
Plating	Zinc with clear trivalent chromate	Housing Connection Style	Male JIC 37 degree
Housing Connection Thread Size (inch)	1 1/16 - 12 UN	Shaft Connection Thread Size (inch)	3/4 - 14 NPTF
