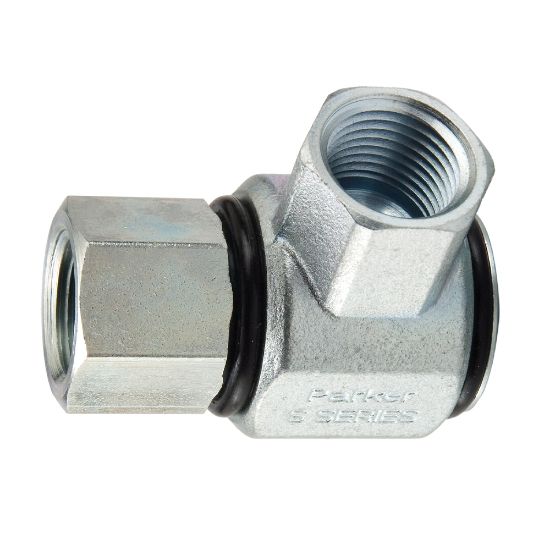

Parker S2202E-4-4 - Pressure Balanced, Hydraulic Swivels - S Series

Parker's swivels are designed to eliminate hose twist and torque that may contribute to premature hose failure.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. S2202E-4-4

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Quick Coupling Division	Minimum Operating Temperature	-65
Maximum Operating Temperature	400	Body Material	Steel
Configuration	90 degree	Maximum Operating Pressure	3000
Maximum Operating Speed	10	Seal Material	Ethylene Propylene
Shaft Connection Style	Female NPTF	Plating	Zinc with clear trivalent chromate
Shaft Connection Thread Size (inch)	1/4 - 18 NPTF	Housing Connection Thread Size (inch)	1/4 - 18 NPTF
Housing Connection Style	Female NPTF
