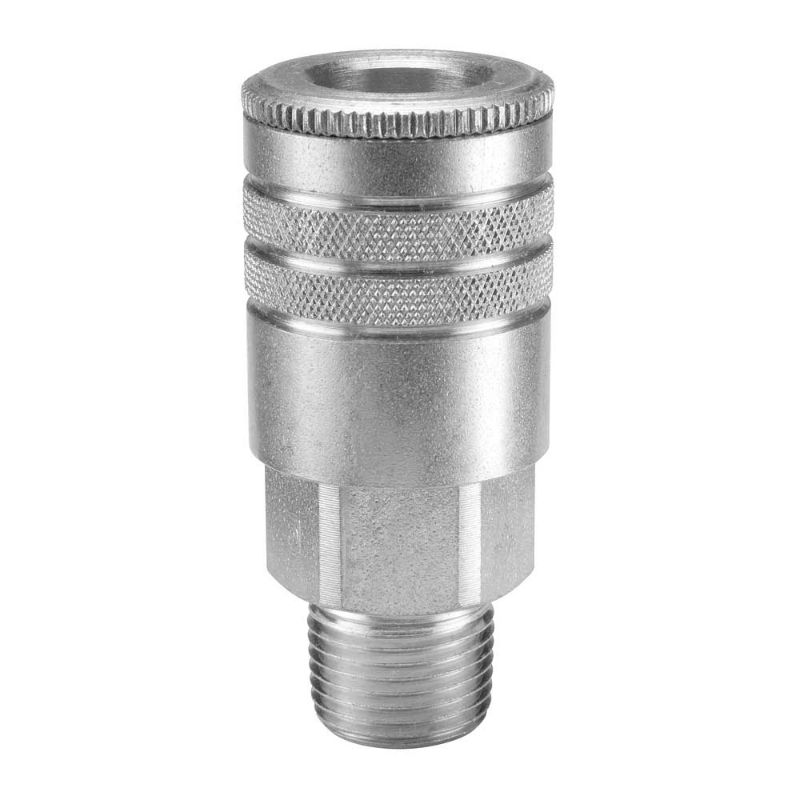

Parker S22 - Industrial Interchange, Manual Connect, Quick Connect Air Couplers - 20 Series

Parker's general purpose, Industrial Interchange pneumatic, air quick connect couplers are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Availability:	Quote Required
Partner Available:	34 In Stock

Brand Parker

Part No. S22

$112.88

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Pressure	300 psi
Specifications Met	Connects with A-A-59439 (MIL-C-4109F, ISO 6150-B	Sleeve Type	Manual
Seal Material	Nitrile	Maximum Operating Temperature	250 °F
Dimensional Weight	0.02670863309352518 lb	Media	Low pressure fluids and compressed air
Valve Type	Tubular	Coupling Half	Coupler
Lock Type	Locking balls	Plating Type	na
Application	Air	Division	Quick Coupling Division
Minimum Operating Temperature	-40 °F	Body Material	Stainless Steel
Connection Type	NPTF	Connection Thread Size (inch)	1/4 - 18
Thread Style	Male	Body Size (inch)	1/4
Connection Hose I.D. (inch)	na	Body Material	Stainless steel (303)

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
