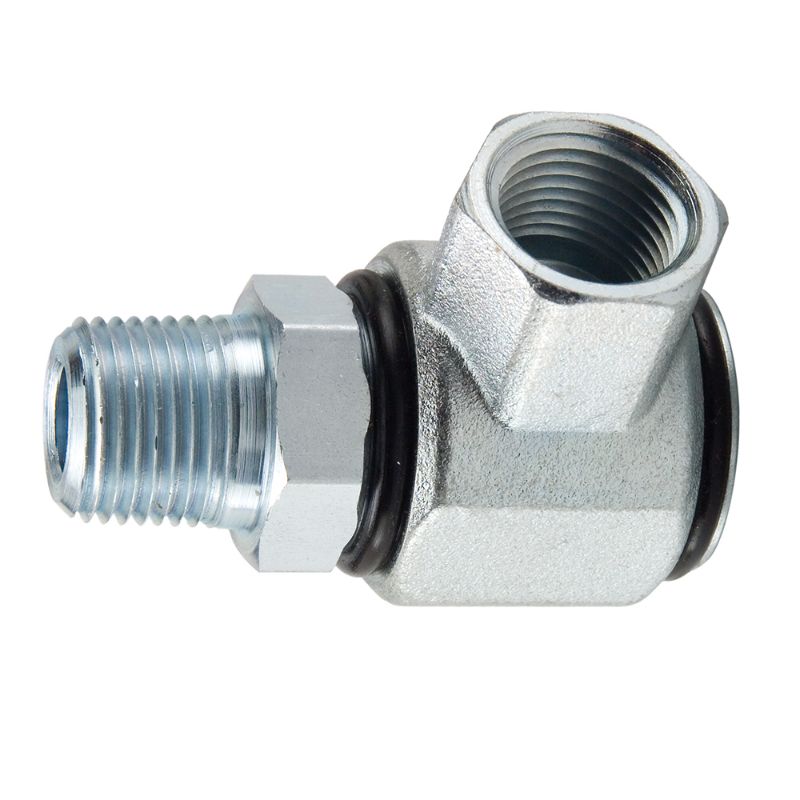

Parker S2102-12-12 - Pressure Balanced, Hydraulic Swivels - S Series

Parker's swivels are designed to eliminate hose twist and torque that may contribute to premature hose failure.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. S2102-12-12

$226.39/each

Products specifications

Attribute name	Attribute value
Division	Quick Coupling Division	Configuration	90 degree
Maximum Operating Speed	10 RPM	Maximum Operating Temperature	250 °F
Body Material	Steel	Minimum Operating Temperature	-40 °F
Maximum Operating Pressure	3000 psi	Shaft Connection Thread Size (inch)	3/4 - 14 NPTF
Seal Material	Nitrile	Shaft Connection Style	Male NPTF
Housing Connection Style	Female NPTF	Housing Connection Thread Size (inch)	3/4 - 14 NPTF
Plating	Zinc with clear trivalent chromate
