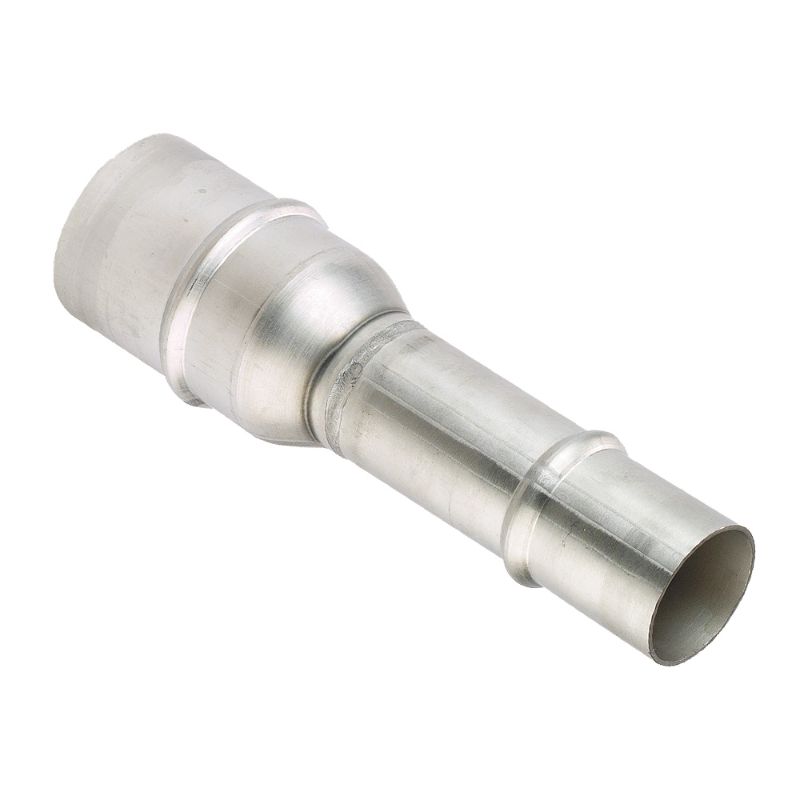

Parker RX66 L3 L1 - Transair® Fittings for Aluminum Pipe

Transair Fittings install fast and with minimal tooling required. All Transair fittings are designed to securely fit around Transair aluminum pipe, increasing system efficiency and preventing compressed air leaks.

AFP Availability:	Quote Required
Partner Available:	3 In Stock

Brand Parker

Part No. RX66 L3 L1

$257.68/each

Products specifications

Attribute name	Attribute value
UOM	EA	Brand	Parker
Industry	General Industrial	Configuration	Pipe to Pipe
Connection 2 Size	3 inch	Vacuum Pressure Rating	0.03 inch-Hg
Maximum Operating Temperature	185 °F	Technology	Pneumatics
Division	Low Pressure Connectors Europe Division	For Fluid Type	Air
Assembly Time	0.02 Hours	Quantity per Box	1
Body Material	Stainless Steel 304	Connection 1 Size	100 mm
Connection 2 Type	Pipe	Product Type	Compressed Air Piping
Product Style	Plug-In Reducer	Division	Fluid System Connectors Division
Shape	Plug-In Reducer	Minimum Operating Temperature	-4 °F
Application	Compressed Air	Specifications Met	ISO 9001
Connection 1 Type	Pipe	Weight	0.702 kg
Maximum Operating Pressure	16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca	Silicone Free	Yes
Connection Thread Size (inch)	n/a	Product Style	Pipe
Pipe O.D. 2 (mm)	76	Pipe O.D. 2 (inch)	3
Pipe O.D. (inch)	4	Pipe O.D. (mm)	100
