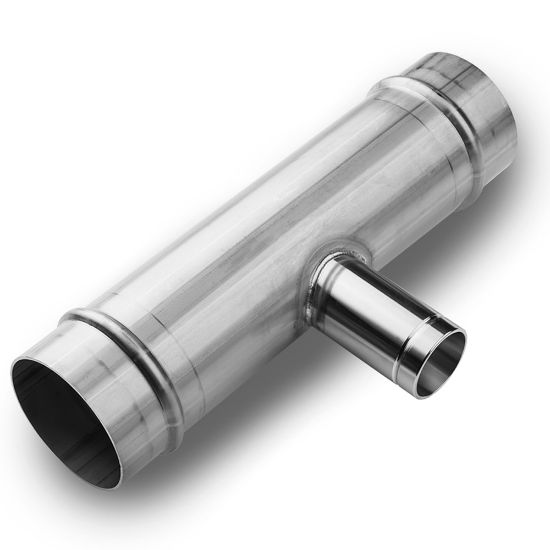

Parker RX24 L1 40 - Transair® Fittings for Aluminum Pipe

Transair Fittings install fast and with minimal tooling required. All Transair fittings are designed to securely fit around Transair aluminum pipe, increasing system efficiency and preventing compressed air leaks.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. RX24 L1 40

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Shape	Reducing Tee	Product Style	Union Fitting
Connection 1 Type	Pipe	Connection 2 Type	Pipe
Minimum Operating Temperature	-4 °F	Division	Low Pressure Connectors Europe Division
Body Material	Stainless Steel 304	Maximum Operating Pressure	232 psi
Assembly Time	0.04 Hours	Technology	Fluid & Gas Handling
Brand	Parker	Connection 2 Size	40 mm
Specifications Met	EN 755.8	Application	Compressed Air
For Fluid Type	Air	Industry	General Industrial
Configuration	Pipe to Pipe	Division	Low Pressure Connectors Europe Division
Maximum Operating Temperature	85 °C	Product Type	Compressed Air Piping
Weight	2.01 lb	Vacuum Pressure Rating	1 mbar
Connection 1 Size	3 inch	Quantity per Box	1
Pipe O.D. 2 (mm)	40	Pipe O.D. (mm)	76
Connection Thread Size (inch)	n/a	Silicone Free	Yes
Product Style	Pipe	Pipe O.D. (inch)	3
Pipe O.D. 2 (inch)	1-1/2
