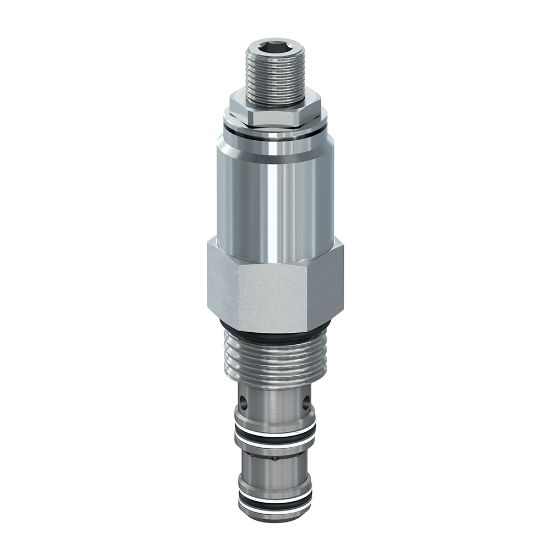

Parker RU101F10CV - Unloading Relief Valves

Parker’s unloading pressure control valves automatically charge and maintain a specific pressure range within accumulators by loading and unloading pump flow. Usable with fixed or variable pumps and pressure of 420 bar (6000 psi) and flow up to 1 gpm.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. RU101F10CV

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Flow Rate	1	Leak Rate	10 (port 2 to 3), 60 (port 1 to 2)
Standard Setting Pressure	500	Maximum Tank Pressure	3000
Weight	0.5	Maximum Operating Pressure	3500
Function	Unloading Relief Valve	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Adjustment Mechanism	Fixed	Valve Material	All parts steel. All operating parts hardened steel
Pressure Control Range	n/a	Installation Torque	16
Division	Hydraulic Systems Division	Body Material	n/a
Seal Material	Fluorocarbon	Actuation Type	Pressure Sensing
Operating Temperature	-15 to +400	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Maximum Flow Rate	1
Maximum Pressure Setting	1000	Maximum Operating Temperature	+400
Division	Hydraulic Valve Systems Division	Cavity Size	C10-3
Minimum Operating Temperature	-15	Maximum Inlet Pressure Rating	3500
Adjustment Mechanism	Fixed	Maximum Flow Rate	1 GAL/MIN, 3.75 L/MIN
Pressure Control Range	100-1000 PSI, 6.9-69 BAR	Seal Material	Fluorocarbon
