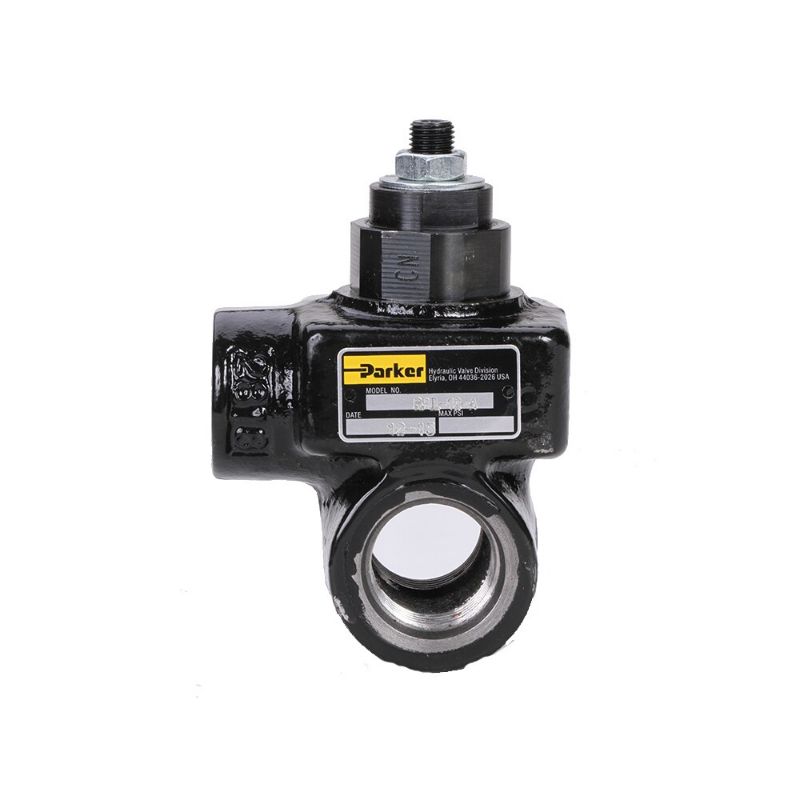

Parker RPJL-75-A - In-Line Mounted Pilot Operated Relief Valve - RPJL Series

Parker’s RPJL In-line Relief valve rated at 25 GPM is designed for limiting the maximum pressure which can be applied to the portion of the hydraulic circuit where it is installed.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. RPJL-75-A

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hydraulic Valve Systems Division	Body Material	High Strength Cast Iron
Minimum Operating Temperature	-40 °F	Adjustment Mechanism	Adjustable
Connection Size	3/4"	Maximum Flow Rate	25 Gal/min
Connection Type	NPT	Mounting Type	In-Line
Pressure Control Range	Adjustable	Product Style	In-Line Pilot Mounted Operated Relief Valve
Maximum Operating Temperature	+200 °F	Seal Material	Nitrile
Actuation Type	Adjustable	Weight	3 lb
Maximum Operating Pressure	2000 psi	For Fluid Type	Hydraulic Oil
Port Size	3/4" NPT
