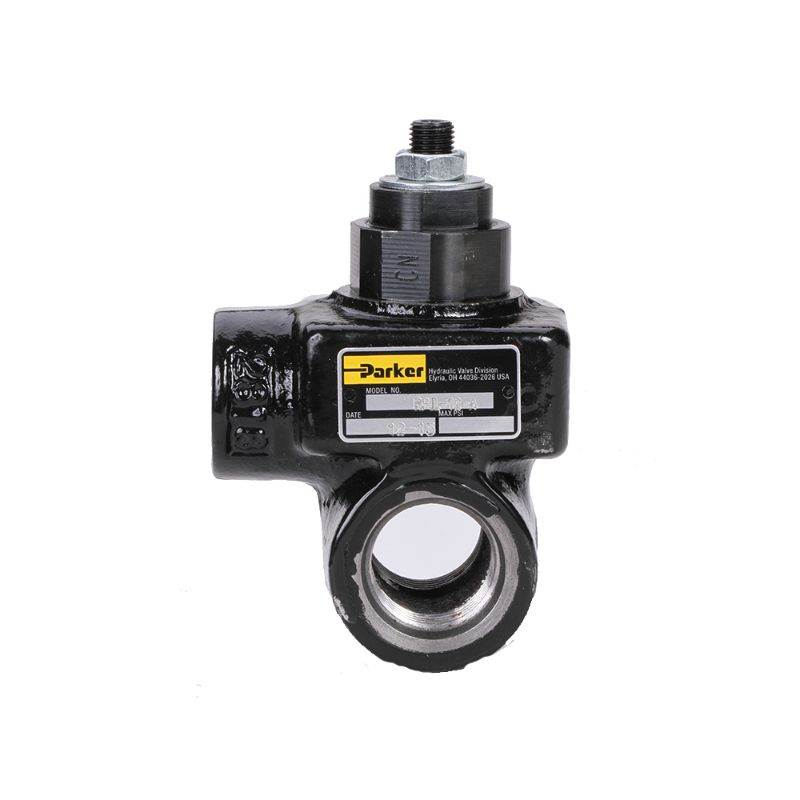

Parker RPJL-10-A - In-Line Mounted Pilot Operated Relief Valve - RPJL Series

Parker’s RPJL In-line Relief valve rated at 25 GPM is designed for limiting the maximum pressure which can be applied to the portion of the hydraulic circuit where it is installed.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. RPJL-10-A

Products specifications

Attribute name	Attribute value
Product Style	In-Line Pilot Mounted Operated Relief Valve	Seal Material	Nitrile
Actuation Type	Adjustable	Pressure Control Range	Adjustable
Maximum Operating Temperature	+200 °F	Weight	3 lb
For Fluid Type	Hydraulic Oil	Division	Hydraulic Valve Systems Division
Connection Type	SAE	Body Material	High Strength Cast Iron
Maximum Operating Pressure	5000 psi	Minimum Operating Temperature	-40 °F
Adjustment Mechanism	Adjustable	Maximum Flow Rate	25 Gal/min
Connection Size	#10	Mounting Type	In-Line
Port Size	SAE-10
