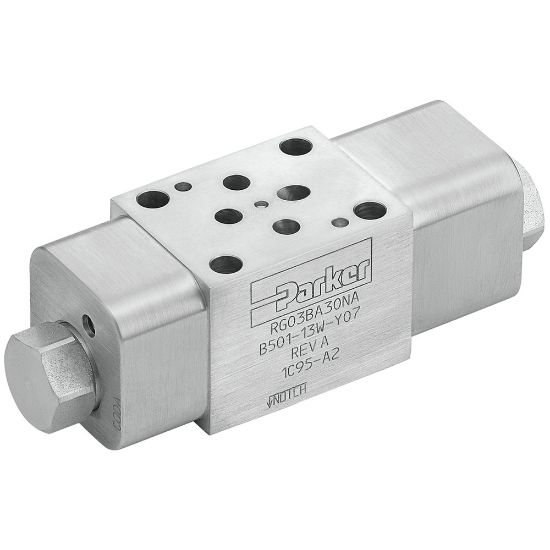

Parker RG5HBA30ND - Regeneration Sandwich Valve – RG Series

Parker’s RG series valve is a full time regenerative valve assembly.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. RG5HBA30ND

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-4	Seal Material	Nitrile
Body Material	Ductile Iron	Allowable Circuit Leakage	<1 dpm
Maximum Operating Temperature	+122	Division	Hydraulic Valve Systems Division
Media	Oil	Filter Efficiency Rating	ISO 4406 (1999); 18/16/13 (meet NAS 1638:7)
Weight	6.9	Maximum Flow Rate	25
Maximum Operating Pressure	5000	Cracking Pressure	30
Product Style	Full Time Regeneration Valve	Mounting Type	Subplate
Actuation Type	Hydraulic Pressure	Port Connection	Regeneration from from B to A
Seal Material	Nitrile	Valve Body Material	Ductile Iron
Size	NFPA DO5HE; CETOP 5H; NG10
