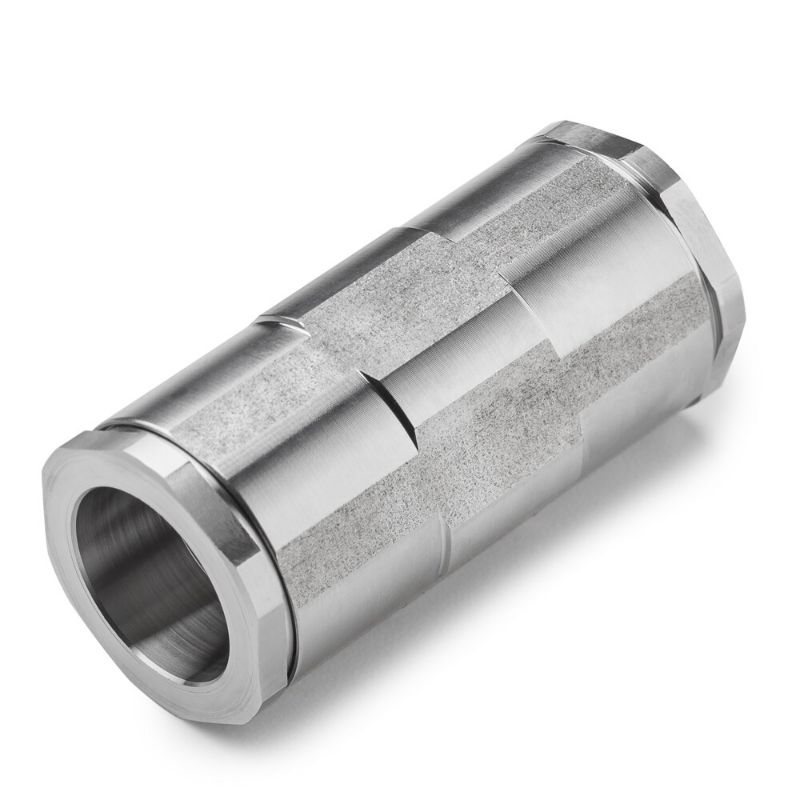

Parker RF06 N7 02 - Transair® Fittings for Stainless Steel Pipe

Transair Fittings for Stainless Steel Pipe are quick and easy to install. Available in EPDM and FKM seals for maximum chemical compatibility.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. RF06 N7 02

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-4 °F	Connection 2 Type	Pipe
Connection 2 Size	22 mm	Pipe Outside Diameter	3/4 inch
Vacuum Pressure Rating	0.03 inch-Hg	Assembly Time	0.04 Hours
Application	Compressed Air	Connection 1 Size	22 mm
Configuration	Pipe to Pipe	Maximum Operating Temperature	90 °C
Shape	Straight	Division	Fluid System Connectors Division
Weight	0.23 kg	Brand	Transair
Quantity per Box	5.0	Maximum Operating Pressure	10 bar
Product Type	Union Fitting	Division	Fluid System Connectors Division
Product Style	Union Fitting	Connection 1 Type	Pipe
Seal Material	FKM	Pipe O.D. (inch)	3/4
Connection Thread Size (inch)	n/a	Shape	316L Stainless Union
Pipe O.D. 2 (mm)	N/A	Seal Material	FKM
Pipe O.D. 2 (inch)	N/A	Pipe O.D. (mm)	22
