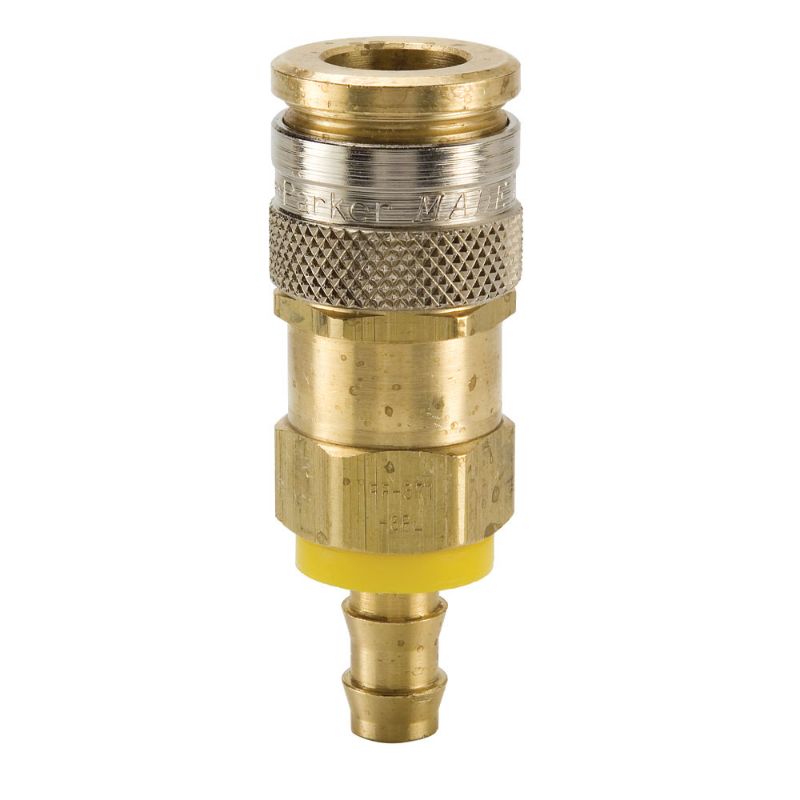

Parker RF-251-6PL - High Flow, Push to Connect, Air Tool & Breathing Air Quick Couplings (pneu) High Flow European Interchange - RF Series Couplers

Note: This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. RF-251-6PL

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Application	Pneumatic
Valve Type	Tubular	Sleeve Type	Push-to-Connect
Specifications Met	Interchanges with Rectus 25 and CEJN 320	Coupling Half	Coupler
Division	Quick Coupling Division	Lock Type	Locking balls
Plating Type	Nickel plating on steel sleeve	Minimum Operating Temperature	-40 °F
Maximum Operating Pressure	300 psi	Media	Low Pressure Fluids
Body Material	Brass	Seal Material	Nitrile
Maximum Operating Temperature	250 °F	Hose I.D.	3/8"
Connection Type	Push-Lok hose barb	Thread Style	n/a
Body Size	1/4"	Connection Thread Size	n/a

Product resources

Literature and Reference Materials

Catalog 3800 Quick Coupling Products (PDF)
