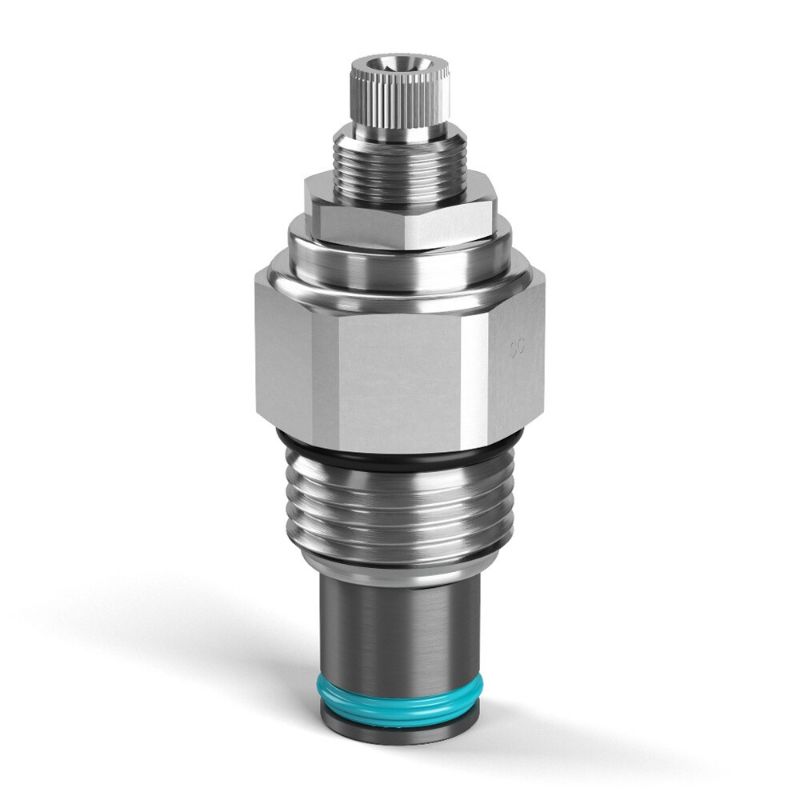

Parker RDH101K20 - Direct Acting Relief Valves

Parker’s direct acting relief valves are available in several cavity sizes and are designed for continuous duty applications with pressures up to 420 bar (6000 psi) and flows up to 200 lpm (53 gpm).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. RDH101K20

$0.01

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Minimum Operating Temperature	-35
Body Material	n/a	Division	Hydraulic Systems Division
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Weight	0.4
Maximum Operating Pressure	5500	Function	Direct Acting
Configuration	Pressure Relief	Actuation Type	Pressure Sensing
Operation Type	Automatic	Adjustment Mechanism	Knob
Wire Mesh Screen Included	n/a	Cavity Size	C10-2
Maximum Tank Pressure	5000	Seal Material	D-Ring (Standard)
Maximum Inlet Pressure Rating	5500	Maximum Operating Temperature	+200
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Mounting Type	Screw in cartridge valve
Operating Temperature	-35 to +200	Installation Torque	37-41
Maximum Flow Rate	0.5	Flow Rate	0.5
Standard Setting Pressure	1000	Maximum Pressure Setting	2000
Pressure Control Range	100-2000	Pressure Control Sensitivity	570 per turn
Reseat Pressure	90% of pressure setting	Leak Rate	5 @ 75% Crack Pressure
Adjustment Mechanism	Knob	Seal Material	D-Ring (Standard)
Maximum Inlet Pressure Rating	5500 PSI, 380 BAR	Pressure Control Range	100-2000 PSI, 6.9-138 BAR
Flow Rate	0.5 GAL/MIN, 1.9 L/MIN
