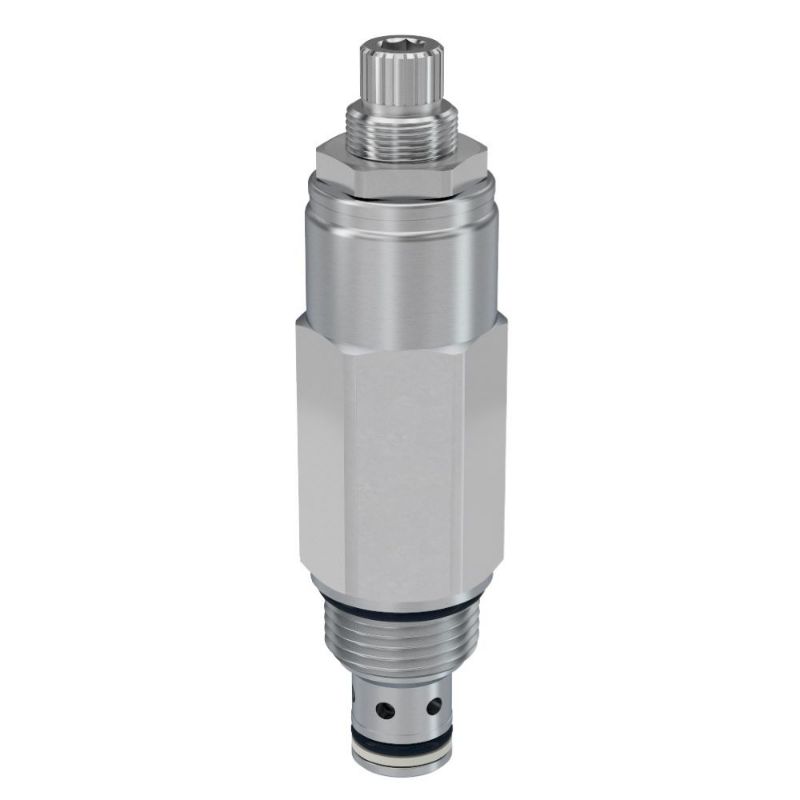

Picture of Parker RDH083K50 - Direct Acting Differential Area Relief Valves

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker RDH083K50 - Direct Acting Differential Area Relief Valves

Parker’s direct acting differential area relief valves are for fast response intermittent applications and work up to 380 bar (5500 psi) and 151 lpm (40 gpm). These valves have lower leakage rates and pressure rise than standard direct acting reliefs.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. RDH083K50
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Seal MaterialNitrileBody Materialn/a
Maximum Operating Pressure5500 psiDivisionHydraulic Systems Division
Maximum Kinematic Viscosity45-2000 SSU (6 to 420 cSt)Minimum Operating Temperature-30 °F
Flow Rate12 Gal/minFunctionDirect Acting
Actuation TypePressure SensingCavity SizeC08-2
Operation TypeAutomaticAdjustment MechanismKnob
Maximum Tank Pressure350 barPort Thread Sizen/a
Maximum Flow Rate12 Gal/minMaximum Inlet Pressure Rating380 bar
Maximum Operating Temperature+250 °FFor Fluid TypeMineral-based or synthetic hydraulic fluids
Valve MaterialAll parts steel. All operating parts hardened steelOperating Temperature-34 to +121 °C
Filter Efficiency RatingISO 4406 18/16/13, SAE Class 4Mounting TypeScrew in cartridge valve
Maximum Pressure Setting350 barCracking PressureN/A psi
Standard Setting Pressure172 barLeak Rate.66 @ 75% Crack Pressure cm3/min
ConfigurationDifferential Area Relief, Differential Relief w/Reverse Flow CheckReseat Pressure75% of pressure setting
Weight0.43 lbInstallation Torque31 Nm
Pressure Control Range138-350 barMinimum Operating Pressure380 bar
Pressure Control Sensitivity614 per turn psiSeal MaterialNitrile
Adjustment MechanismKnobMounting TypeScrew in cartridge valve
Cracking PressureN/AFlow Rate12 GAL/MIN, 45 L/MIN
Maximum Inlet Pressure Rating5500 PSI, 380 BARStandard Setting Pressure2500 PSI, 172 BAR
Pressure Control Range2000-5000 PSI, 138-350 BAR
