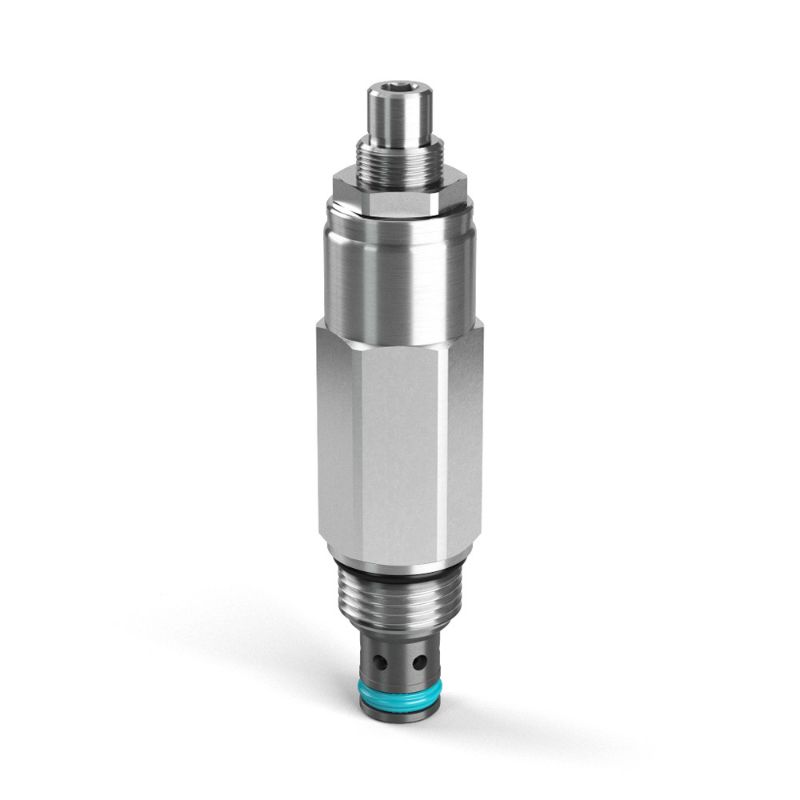

Parker RDH082S15 - Direct Acting Relief Valves

Parker’s direct acting relief valves are available in several cavity sizes and are designed for continuous duty applications with pressures up to 420 bar (6000 psi) and flows up to 200 lpm (53 gpm).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. RDH082S15

$51.56

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	n/a
Division	Hydraulic Systems Division	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-37 °C	Weight	0.18 kg
Flow Rate	30 L/min	Maximum Flow Rate	8 Gal/min
Function	Direct Acting	Configuration	Pressure Relief
Actuation Type	Pressure Sensing	Cavity Size	C08-2
Operation Type	Automatic	Adjustment Mechanism	Screw
Wire Mesh Screen Included	n/a	Maximum Tank Pressure	350 bar
Seal Material	D-Ring (Standard)	Maximum Inlet Pressure Rating	380 bar
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Mounting Type	Screw in cartridge valve
Operating Temperature	-37 to +93 °C	Maximum Operating Temperature	+93 °C
Installation Torque	32-36 lb-ft	Maximum Operating Pressure	380 bar
Leak Rate	5 @ 75% Crack Pressure drops/min	Reseat Pressure	85% of pressure setting
Pressure Control Range	100-1500 psi	Maximum Pressure Setting	1500 psi
Standard Setting Pressure	750 psi	Pressure Control Sensitivity	280 per turn psi
Adjustment Mechanism	Screw	Flow Rate	8 GAL/MIN, 30 L/MIN
Seal Material	D-Ring (Standard)	Maximum Inlet Pressure Rating	5500 PSI, 380 BAR
Pressure Control Range	100-1500 PSI, 6.9-103 BAR
