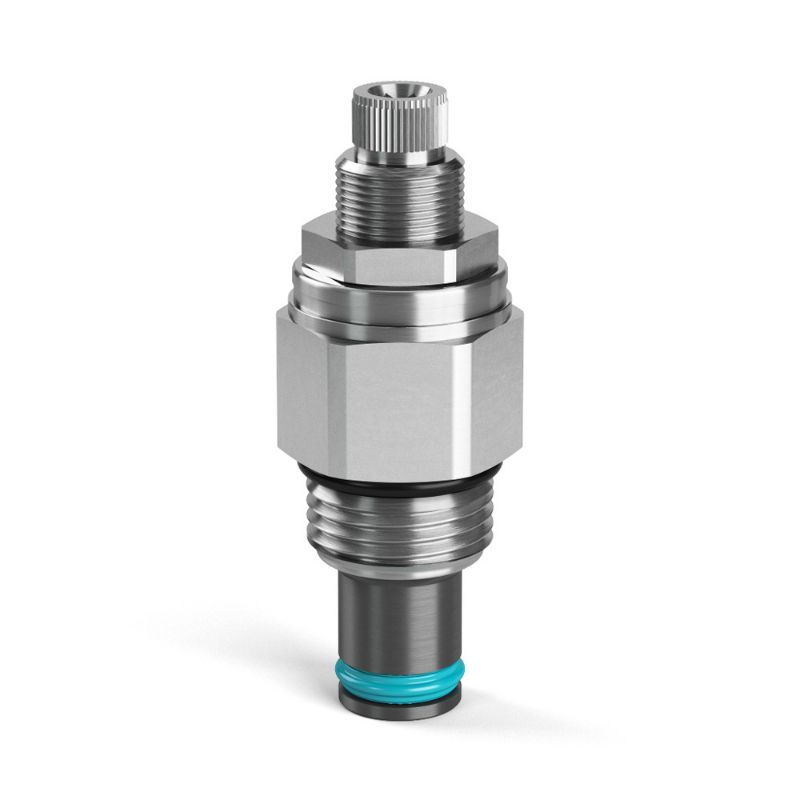

Parker RDH081S30 - Direct Acting Relief Valves

Name: Parker RDH081S30 - Direct Acting Relief Valves
SKU: RDH081S30
Price: 46.00 USD
Availability: InStock

Parker’s direct acting relief valves are available in several cavity sizes and are designed for continuous duty applications with pressures up to 420 bar (6000 psi) and flows up to 200 lpm (53 gpm).

AFP Availability:

2 Limited Stock

North Chesterfield, VA

Partner Available:

14 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. RDH081S30

$46.00/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Cavity Size	C08-2
Maximum Operating Temperature	+200 °F	Mounting Type	Screw in cartridge valve
Standard Setting Pressure	103.4 bar	Leak Rate	0.33 @ 75% Crack Pressure cm3/min
Minimum Operating Temperature	-37 °C	Maximum Flow Rate	0.5 Gal/min
Operation Type	Automatic	Operating Temperature	-35 to +200 °F
Body Material	N/A	Division	Hydraulic Systems Division
Reseat Pressure	90% of pressure setting	Installation Torque	43-49 Nm
Flow Rate	1.9 L/min	Actuation Type	Pressure Sensing
Seal Material	D-Ring (Standard)	Wire Mesh Screen Included	N/A
Maximum Inlet Pressure Rating	380 bar	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Maximum Operating Pressure	380 bar
Adjustment Mechanism	Screw	Valve Material	All parts steel. All operating parts hardened steel
Weight	0.09 kg	Function	Direct Acting
Maximum Tank Pressure	350 bar	Maximum Pressure Setting	210 bar
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Pressure Control Sensitivity	58.9 per turn bar
Pressure Control Range	13.8-210 bar	Configuration	Pressure Relief
Adjustment Mechanism	Screw	Seal Material	D-Ring (Standard)
Maximum Inlet Pressure Rating	5500 PSI, 380 BAR	Pressure Control Range	200-3000 PSI, 13.8-210 BAR
Flow Rate	0.5 GAL/MIN, 1.9 L/MIN
