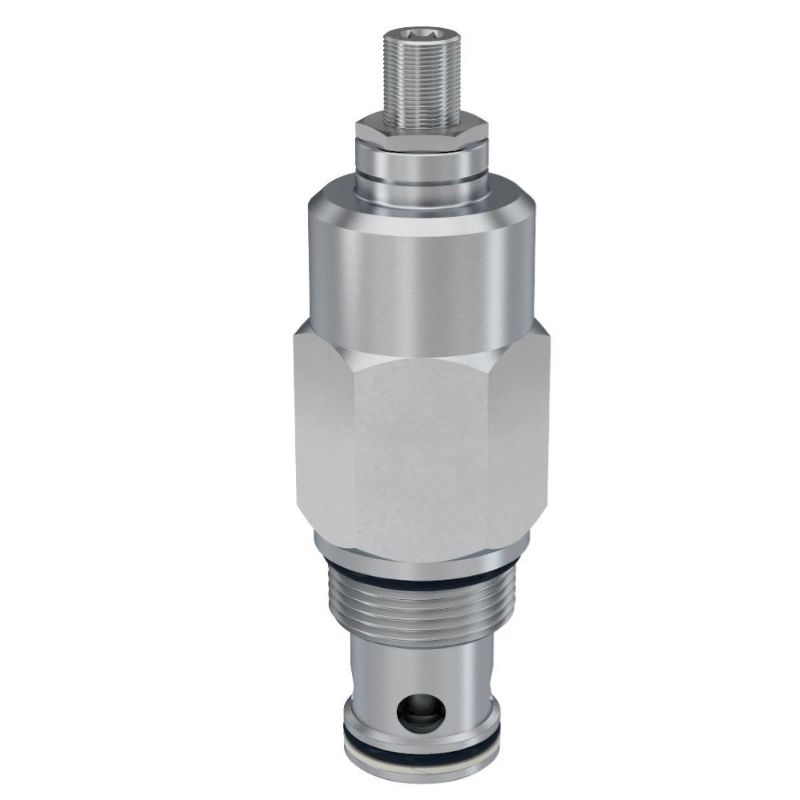

Parker RD163S10 - Direct Acting Differential Area Relief Valves

Parker’s direct acting differential area relief valves are for fast response intermittent applications and work up to 380 bar (5500 psi) and 151 lpm (40 gpm). These valves have lower leakage rates and pressure rise than standard direct acting reliefs.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. RD163S10

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Body Material	n/a
Division	Hydraulic Systems Division	Maximum Operating Pressure	3500 psi
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Maximum Inlet Pressure Rating	3500 psi
Minimum Operating Temperature	-30 °F	Installation Torque	40 lb-ft
Weight	0.5 lb	Maximum Flow Rate	151 L/min
Function	Direct Acting	Actuation Type	Pressure Sensing
Operation Type	Automatic	Adjustment Mechanism	Screw
Port Thread Size	n/a	Cavity Size	C16-2
Flow Rate	40 Gal/min	Maximum Operating Temperature	+250 °F
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Operating Temperature	-30 to +250 °F	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Mounting Type	Screw in cartridge valve	Maximum Tank Pressure	210 bar
Maximum Pressure Setting	69 bar	Standard Setting Pressure	34.5 bar
Cracking Pressure	N/A psi	Pressure Control Range	13.8-69 bar
Reseat Pressure	80% of pressure setting	Leak Rate	.66 @ 75% Crack Pressure cm3/min
Configuration	Differential Area Relief, Differential Relief w/Reverse Flow Check	Pressure Control Sensitivity	104 per turn psi
Minimum Operating Pressure	240 bar	Seal Material	Nitrile
Adjustment Mechanism	Screw	Mounting Type	Screw in cartridge valve
Cracking Pressure	N/A	Pressure Control Range	200-1000 PSI, 13.8-69 BAR
Flow Rate	40 GAL/MIN, 151 L/MIN	Maximum Inlet Pressure Rating	3500 PSI, 240 BAR
Standard Setting Pressure	500 PSI, 34.5 BAR
