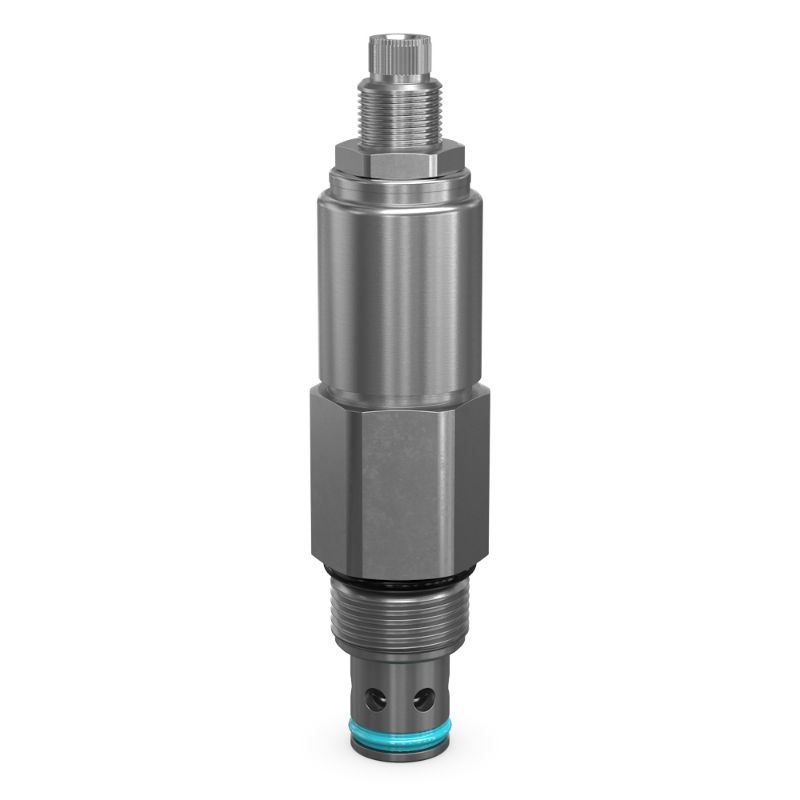

Parker RD102K30V - Direct Acting Relief Valves

Parker’s direct acting relief valves are available in several cavity sizes and are designed for continuous duty applications with pressures up to 420 bar (6000 psi) and flows up to 200 lpm (53 gpm).

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. RD102K30V

$74.25/each

Products specifications

Attribute name	Attribute value
UOM	EA	Flow Rate	38 L/min
Installation Torque	37-41 lb-ft	Reseat Pressure	85% of pressure setting
Wire Mesh Screen Included	N/A	Actuation Type	Pressure Sensing
Seal Material	Fluorocarbon	Valve Material	All parts steel. All operating parts hardened steel
Weight	0.23 kg	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Maximum Operating Pressure	3600 psi
Adjustment Mechanism	Knob	Maximum Tank Pressure	210 bar
Maximum Pressure Setting	3000 psi	Function	Direct Acting
Maximum Inlet Pressure Rating	3600 psi	Configuration	Pressure Relief
Pressure Control Sensitivity	103.4 per turn bar	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Pressure Control Range	41.4-210 bar	Cavity Size	C10-2
Maximum Operating Temperature	+204 °C	Leak Rate	5 @ 75% Crack Pressure drops/min
Standard Setting Pressure	103.4 bar	Mounting Type	Screw in cartridge valve
Operation Type	Automatic	Maximum Flow Rate	38 L/min
Division	Hydraulic Systems Division	Body Material	N/A
Minimum Operating Temperature	-26 °C	Operating Temperature	-15 to +400 °F
Seal Material	Fluorocarbon	Adjustment Mechanism	Knob
Flow Rate	10 GAL/MIN, 38 L/MIN	Maximum Inlet Pressure Rating	3600 PSI, 250 BAR
Pressure Control Range	600-3000 PSI, 41.4-210 BAR
