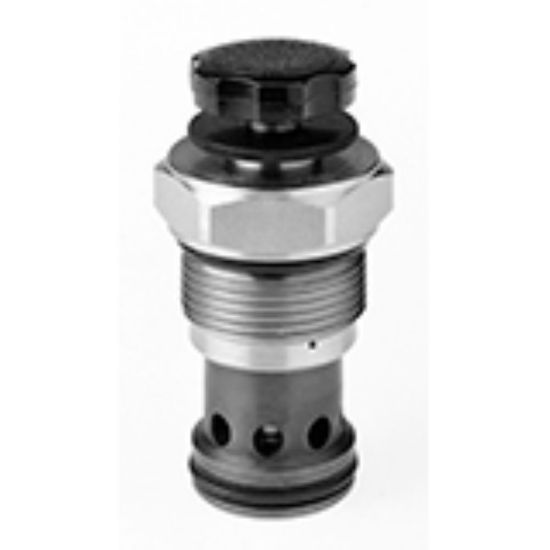

Parker RAH201T30 - Pilot Operated Relief Valves

Parker’s pilot operated relief valves are designed for continuous duty applications featuring great stability with low pressure drop; working with pressures up to 420 bar (6000 psi) and flows up to 400 lpm (106 gpm).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. RAH201T30

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Body Material	n/a
Maximum Operating Pressure	5000 psi	Division	Hydraulic Cartridge Systems Division
Division	Hydraulic Systems Division	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-34 °C	Weight	2 lb
Maximum Flow Rate	379 L/min	Configuration	Pressure Relief
Actuation Type	Pressure Sensing	Maximum Pressure Setting	210 bar
Operation Type	Automatic	Adjustment Mechanism	Tamper Resistant
Function	Pilot Operated	Maximum Tank Pressure	5000 psi
Cavity Size	C20-2	Maximum Inlet Pressure Rating	380 bar
Installation Torque	133 Nm	Maximum Operating Temperature	+250 °F
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Operating Temperature	-34 to +121 °C	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Mounting Type	Screw in cartridge valve	Flow Rate	379 L/min
Standard Setting Pressure	1500 psi	Pressure Control Range	300-3000 psi
Leak Rate	5 per @ 100 psi (6.8 bar) setting cm3/min	Reseat Pressure	80% of pressure setting
Pressure Control Sensitivity	867 per turn psi	Seal Material	Nitrile
Adjustment Mechanism	Tamper Resistant	Maximum Inlet Pressure Rating	5500 PSI, 380 BAR
Pressure Control Range	300-3000 PSI, 20.7-210 BAR	Flow Rate	100 GAL/MIN, 379 L/MIN
