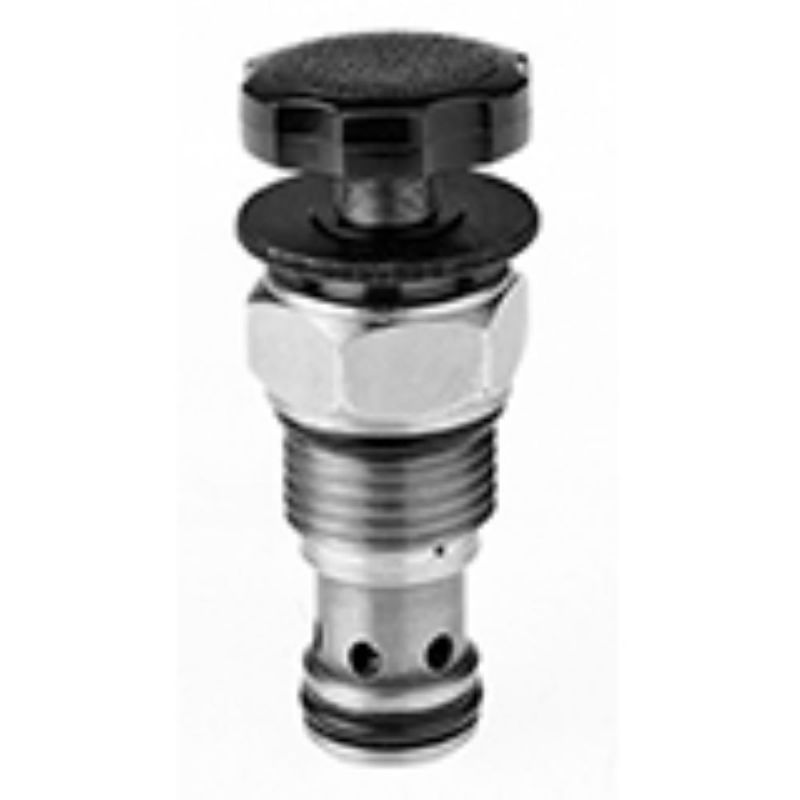

Parker RAH121T10 - Pilot Operated Relief Valves

Parker’s pilot operated relief valves are designed for continuous duty applications featuring great stability with low pressure drop; working with pressures up to 420 bar (6000 psi) and flows up to 400 lpm (106 gpm).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. RAH121T10

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Body Material	n/a
Maximum Operating Pressure	5000 psi	Division	Hydraulic Cartridge Systems Division
Division	Hydraulic Systems Division	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Maximum Flow Rate	50 Gal/min	Minimum Operating Temperature	-34 °C
Configuration	Pressure Relief	Actuation Type	Pressure Sensing
Operation Type	Automatic	Adjustment Mechanism	Tamper Resistant
Function	Pilot Operated	Maximum Tank Pressure	350 bar
Cavity Size	C12-2	Maximum Inlet Pressure Rating	5500 psi
Maximum Operating Temperature	+250 °F	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Valve Material	All parts steel. All operating parts hardened steel	Operating Temperature	-34 to +121 °C
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Mounting Type	Screw in cartridge valve
Installation Torque	92-96 lb-ft	Weight	0.22 kg
Maximum Pressure Setting	1000 psi	Standard Setting Pressure	500 psi
Pressure Control Range	6.9-69 bar	Pressure Control Sensitivity	334 per turn psi
Reseat Pressure	80% of pressure setting	Flow Rate	189.5 L/min
Leak Rate	82 @ 75% Crack Pressure cm3/min	Seal Material	Nitrile
Adjustment Mechanism	Tamper Resistant	Maximum Inlet Pressure Rating	5500 PSI, 380 BAR
Pressure Control Range	100-1000 PSI, 6.9-69 BAR	Flow Rate	50 GAL/MIN, 189.5 L/MIN
