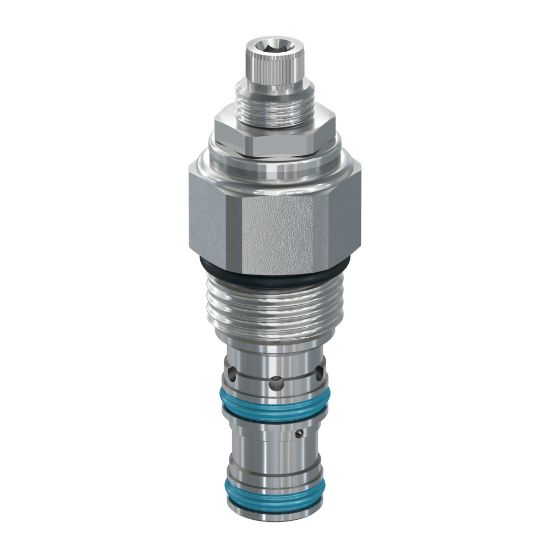

Picture of Parker RAH101VS10 - Pilot Operated Ventable Relief Valves

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker RAH101VS10 - Pilot Operated Ventable Relief Valves

REGIONAL - Parker’s pilot operated ventable relief valves offer the ability to control the pressure setting via internal adjustment or remote circuit; ideal in applications that require multiple settings up to 420 bar (6000 psi) and 400 lpm (106 gpm).
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. RAH101VS10
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Body Materialn/aDivisionHydraulic Cartridge Systems Division
DivisionHydraulic Systems DivisionMaximum Kinematic Viscosity45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature-35 °FWeight0.5 lb
Maximum Operating Pressure350 barActuation TypePressure Sensing
Operation TypeAutomaticAdjustment MechanismScrew
FunctionPilot OperatedConfigurationVentable Pressure Relief
Maximum Tank Pressure5000 psiSeal MaterialD-Ring (Standard)
Cavity SizeC10-3Maximum Inlet Pressure Rating380 bar
Installation Torque48 lb-ftFor Fluid TypeMineral-based or synthetic hydraulic fluids
Valve MaterialAll parts steel. All operating parts hardened steelFilter Efficiency RatingISO 4406 18/16/13, SAE Class 4
Mounting TypeScrew in cartridge valveOperating Temperature-35 to +200 °F
Maximum Operating Temperature+93 °CFlow Rate18 Gal/min
Maximum Flow Rate18 Gal/minMaximum Pressure Setting1000 psi
Standard Setting Pressure34.5 barPressure Control Sensitivity19.6 per turn bar
Pressure Control Range100-1000 psiReseat Pressure80% of pressure setting
Leak Rate5 per 100 psi (6.8 bar) setting cm3/minAdjustment MechanismScrew
Seal MaterialD-Ring (Standard)Flow Rate18 GAL/MIN, 68 L/MIN
Maximum Inlet Pressure Rating5500 PSI, 380 BARPressure Control Range100-1000 PSI, 6.9-69 BAR
