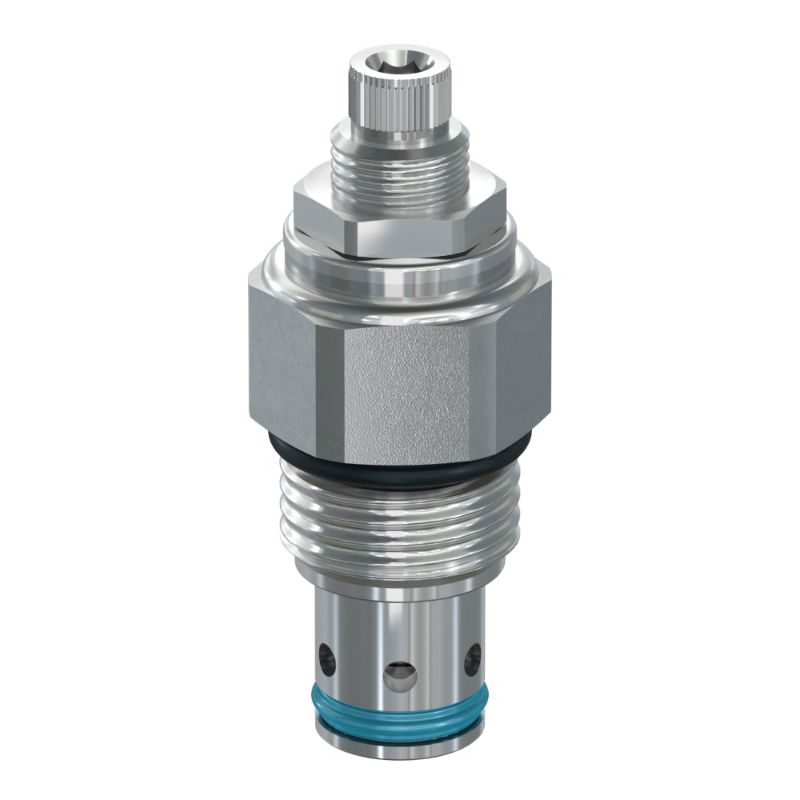

Parker RAH101F20 - Pilot Operated Relief Valves

Parker’s pilot operated relief valves are designed for continuous duty applications featuring great stability with low pressure drop; working with pressures up to 420 bar (6000 psi) and flows up to 400 lpm (106 gpm).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. RAH101F20

$0.01

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Minimum Operating Temperature	-35
Body Material	n/a	Maximum Operating Pressure	5000
Division	Hydraulic Valve Systems Division	Division	Hydraulic Systems Division
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Weight	0.5
Flow Rate	30	Maximum Flow Rate	30
Configuration	Pressure Relief	Actuation Type	Pressure Sensing
Operation Type	Automatic	Function	Pilot Operated
Cavity Size	C10-2	Maximum Tank Pressure	5000
Pressure Control Sensitivity	n/a	Maximum Inlet Pressure Rating	5000
Seal Material	D-Ring (Standard)	Adjustment Mechanism	Fixed
Maximum Operating Temperature	+200	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Valve Material	All parts steel. All operating parts hardened steel	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Mounting Type	Screw in cartridge valve	Operating Temperature	-35 to +200
Installation Torque	51-55	Standard Setting Pressure	1000
Maximum Pressure Setting	2000	Pressure Control Range	100-2000
Leak Rate	5 per @ 100 psi (6.8 bar) setting	Reseat Pressure	90% of pressure setting
Maximum Inlet Pressure Rating	5000 PSI, 350 BAR	Seal Material	D-Ring (Standard)
Adjustment Mechanism	Fixed	Flow Rate	30 GAL/MIN, 113 L/MIN
Pressure Control Range	100-2000 PSI, 6.9-138 BAR
