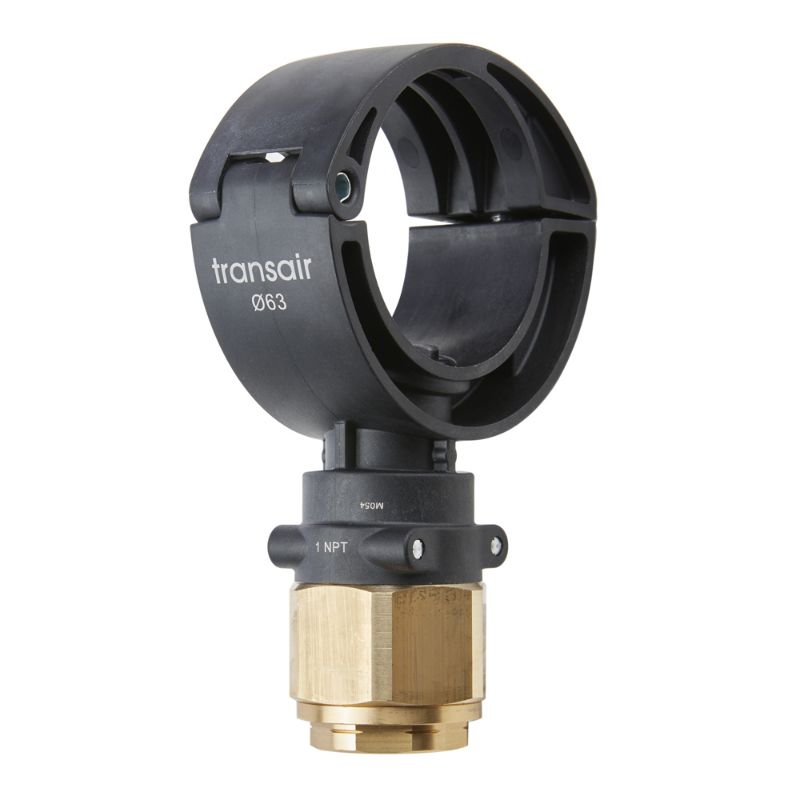

Parker RA68 63N08 - Transair® Drop Brackets for Aluminum Pipe

Transair® Drop Brackets are designed for the quick and easy addition of drop lines to an existing compressed air pipe or inert gas system.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. RA68 63N08

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Parker	Product Type	Compressed Air Piping
Division	Fluid System Connectors Division	Minimum Operating Temperature	-20 °C
Industry	General Industrial	Application	In Plant Pneumatic
Division	Fluid System Connectors Division	Technology	Pneumatics
Assembly Time	0.05 Hours	Quantity per Box	5
Specifications Met	CE	Maximum Operating Pressure	232 psi
Maximum Operating Temperature	185 °F	Connection 1 Type	Pipe
Connection 2 Type	NPT	Body Material	Technical Polymer
Connection 1 Size	2-1/2 inch	Connection 2 Size	1 inch
Configuration	Pipe to Port	Product Style	Quick Assembly Bracket
For Fluid Type	Industrial Gas Compressed Air, Inert Gas, Vacuum	Vacuum Pressure Rating	0.03 inch-Hg 99,9% (absolute pressure)
Assembly	Drop	Silicone Free	Yes
Shape	Simple Reducing	Weight	1.06 lb
Connection 2 Size	1"	Body Material	Technical Polymer
Connection 1 Size	2-1/2" (63 mm)	Connection 2 Type	Female Threaded NPT Simple Reducing Bracket
