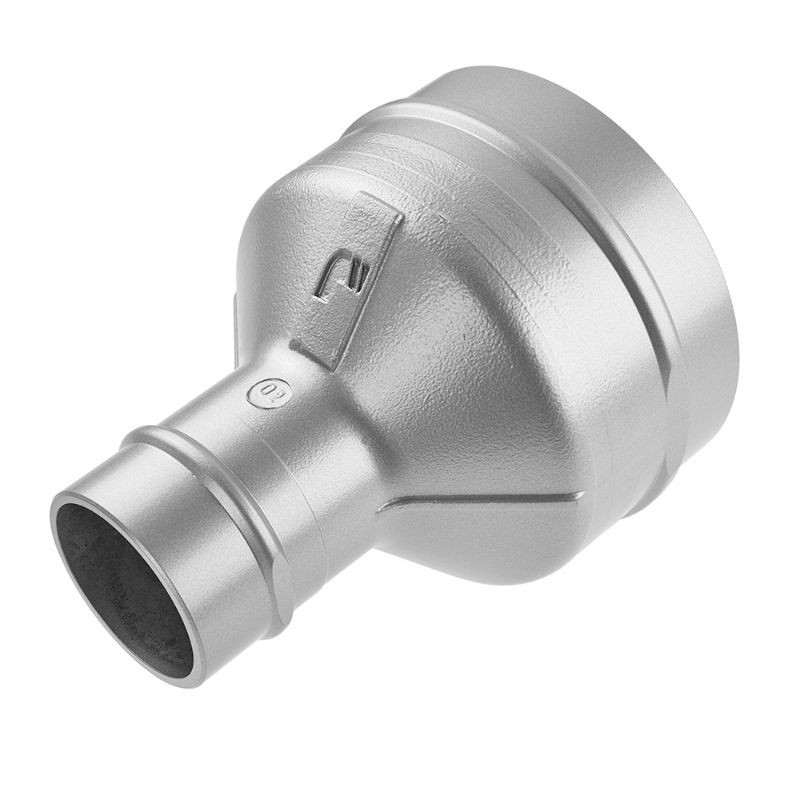

Parker RA66 L8 L1 - Transair® Fittings for Aluminum Pipe

Transair Fittings install fast and with minimal tooling required. All Transair fittings are designed to securely fit around Transair aluminum pipe, increasing system efficiency and preventing compressed air leaks.

Availability:	Quote Required
Partner Available:	6 In Stock

Brand Parker

Part No. RA66 L8 L1

$343.25

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Brand	Transair
Division	Low Pressure Connectors Europe Division	Product Type	Compressed Air Piping
Division	Fluid System Connectors Division	Minimum Operating Temperature	-4 °F
Industry	General Industrial	Technology	Fluid & Gas Handling
Application	Vacuum	Body Material	Treated Aluminum
Configuration	Pipe to Pipe	Specifications Met	ASME B31.1 - 31.9
Vacuum Pressure Rating	1 mbar	Maximum Operating Temperature	60 °C
For Fluid Type	Industrial Gas	Connection 1 Type	Pipe
Quantity per Box	1	Connection 2 Type	Pipe
Assembly Time	0.02 Hours	Shape	Plug-In Reducer
Product Style	Plug-in Fitting	Weight	1.388 kg
Connection 1 Size	6 inch	Connection 2 Size	76 mm
Maximum Operating Pressure	13 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca	Connection Thread Size (inch)	n/a
Silicone Free	Yes	Product Style	Pipe
Pipe O.D. (mm)	168	Pipe O.D. (inch)	6
Pipe O.D. 2 (mm)	76	Pipe O.D. 2 (inch)	3
