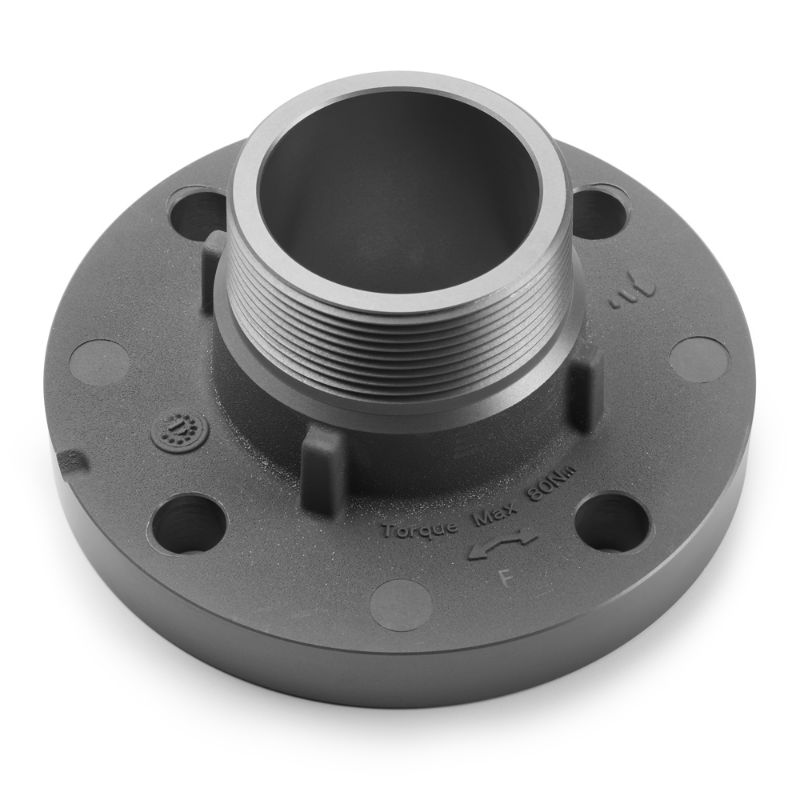

Parker RA33 L1N24 - Transair® Fittings for Aluminum Pipe

Transair Fittings install fast and with minimal tooling required. All Transair fittings are designed to securely fit around Transair aluminum pipe, increasing system efficiency and preventing compressed air leaks.

Availability:	Quote Required
Partner Available:	3 In Stock

Brand Parker

Part No. RA33 L1N24

$1,101.60

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Brand	Transair
Product Type	Compressed Air Piping	Shape	Straight
Minimum Operating Temperature	-4 °F	Industry	General Industrial
Division	Fluid System Connectors Division	Division	Low Pressure Connectors Europe Division
Application	Compressed Air	Technology	Pneumatics
Body Material	Treated Aluminum	Vacuum Pressure Rating	0.03 inch-Hg
Maximum Operating Pressure	232 psi	Maximum Operating Temperature	185 °F
For Fluid Type	Air	Connection 1 Type	Pipe
Quantity per Box	1	Connection 2 Size	3 inch
Connection 1 Size	76 mm	Assembly Time	0.25 Hours
Weight	2.086 kg	Configuration	Port to Flange
Product Style	Flange Adapter	Connection 2 Type	Flange
Connection Thread Size (inch)	n/a	Silicone Free	Yes
Pipe O.D. 2 (mm)	N/A	Pipe O.D. 2 (inch)	N/A
Pipe O.D. (mm)	76	Pipe O.D. (inch)	3
Product Style	Flange

Product resources

Compliance, Certifications & Safety

Transair Regulations & Certifications (PDF)

Literature and Reference Materials
