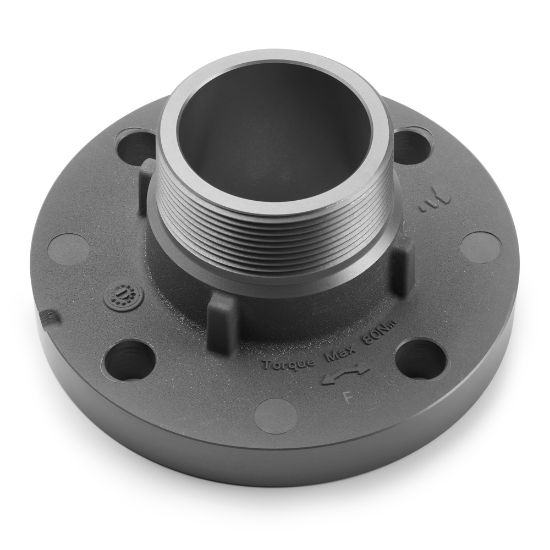

Parker RA33 L1 24 - Transair® Fittings for Aluminum Pipe

Transair Fittings install fast and with minimal tooling required. All Transair fittings are designed to securely fit around Transair aluminum pipe, increasing system efficiency and preventing compressed air leaks.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. RA33 L1 24

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Parker	Division	Low Pressure Connectors Europe Division
Product Type	Compressed Air Piping	Shape	Straight
Maximum Operating Temperature	85 °C	Minimum Operating Temperature	-20 °C
Industry	General Industrial	Technology	Fluid & Gas Handling
Division	Low Pressure Connectors Europe Division	Body Material	Treated Aluminum
Specifications Met	ISO 8573 (Air Quality)	Vacuum Pressure Rating	0.03 inch-Hg
Maximum Operating Pressure	232 psi	For Fluid Type	Industrial Gas
Connection 1 Type	Pipe	Quantity per Box	1
Application	Inert Gas	Assembly Time	0.25 Hours
Weight	2.089 kg	Configuration	Port to Flange
Product Style	ISO Flange Adapter	Connection 1 Size	3 inch
Connection 2 Size	76 mm	Connection 2 Type	Flange
Silicone Free	Yes	Connection Thread Size (inch)	3
Pipe O.D. 2 (mm)	N/A	Pipe O.D. 2 (inch)	N/A
Pipe O.D. (mm)	76	Pipe O.D. (inch)	3
Product Style	Flange
