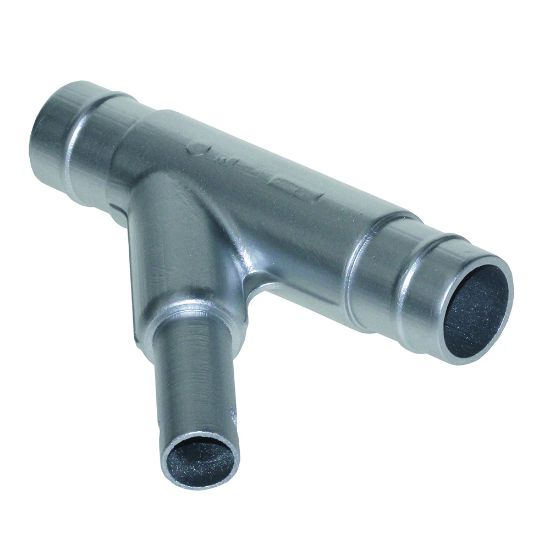

Parker RA26 L3 L1 - Transair® Fittings for Aluminum Pipe

Transair Fittings install fast and with minimal tooling required. All Transair fittings are designed to securely fit around Transair aluminum pipe, increasing system efficiency and preventing compressed air leaks.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. RA26 L3 L1

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Parker	Division	Low Pressure Connectors Europe Division
Product Type	Compressed Air Piping	Maximum Operating Temperature	85 °C
Minimum Operating Temperature	-20 °C	Industry	General Industrial
Technology	Fluid & Gas Handling	Division	Low Pressure Connectors Europe Division
Application	Vacuum	Body Material	Treated Aluminum
Configuration	Pipe to Pipe	Specifications Met	EN 755.8
Vacuum Pressure Rating	1 mbar	Maximum Operating Pressure	16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca
For Fluid Type	Industrial Gas	Connection 1 Type	Pipe
Quantity per Box	1	Connection 2 Type	Pipe
Product Style	Union Fitting	Assembly Time	0.02 Hours
Shape	Reducing Wye	Weight	3.265 kg
Connection 1 Size	4 inch	Connection 2 Size	76 mm
Connection Thread Size (inch)	n/a	Silicone Free	Yes
Product Style	Pipe	Pipe O.D. (inch)	4
Pipe O.D. (mm)	100	Pipe O.D. 2 (mm)	76
Pipe O.D. 2 (inch)	3
