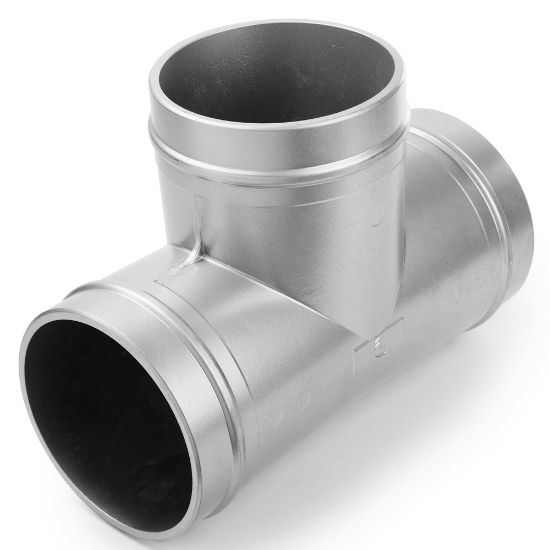

Parker RA04 L8 00 - Transair® Fittings for Aluminum Pipe

Transair Fittings install fast and with minimal tooling required. All Transair fittings are designed to securely fit around Transair aluminum pipe, increasing system efficiency and preventing compressed air leaks.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. RA04 L8 00

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Parker	Division	Low Pressure Connectors Europe Division
Product Type	Compressed Air Piping	Minimum Operating Temperature	-4 °F
Industry	General Industrial	Technology	Fluid & Gas Handling
Division	Low Pressure Connectors Europe Division	Application	Vacuum
Body Material	Treated Aluminum	Configuration	Pipe to Pipe
Specifications Met	EN 573.3	Vacuum Pressure Rating	0.03 inch-Hg
Maximum Operating Temperature	185 °F	For Fluid Type	Air
Connection 1 Type	Pipe	Quantity per Box	1
Connection 2 Type	Pipe	Shape	Equal Tee
Product Style	Union Fitting	Assembly Time	0.02 Hours
Weight	4.975 kg	Connection 1 Size	6 inch
Connection 2 Size	168 mm	Maximum Operating Pressure	13 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca
Connection Thread Size (inch)	n/a	Silicone Free	Yes
Product Style	Pipe	Pipe O.D. 2 (mm)	N/A
Pipe O.D. 2 (inch)	N/A	Pipe O.D. (mm)	168
Pipe O.D. (inch)	6
