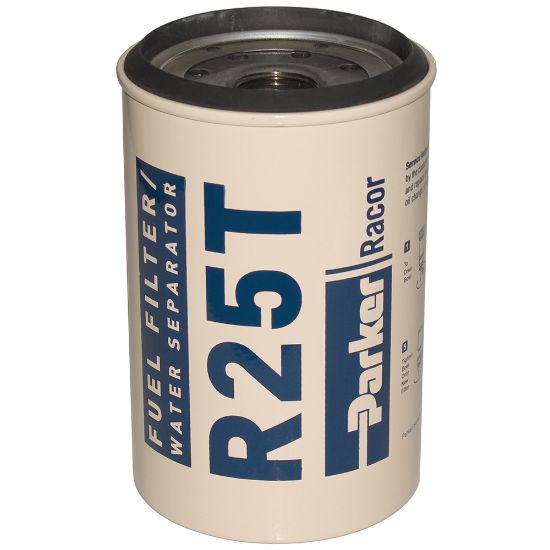

Parker R25T - Replacement Filter Elements – Racor Spin-on Series

Spin-on Series Replacement Filter Elements can be used in a wide range of Racor fuel filter / water separator housings. The elements utilize proprietary Aquabloc® engineered media, which provides excellent water removal and dirt-holding capabilities.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. R25T

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Product Series	Diesel Spin-on FF/WS	Flow Direction	Inside-to-Outside
Division	Engine Mobile Original Equipment Division	Brand	Racor
Related Parts	Clear Bowl: RK 22350-02	Micron Rating	98% : 10
Specifications Met	No	Thread Size	1"-14
Filter Element Type	10 Micron Aquabloc® Spin-on	Location	North America and EMEA regions
Connection Type	3.125" Female Bottom Threads	Outside Diameter	3.8" (97 mm)
Height	5.5" (140 mm)	Product Series	245R

Product resources

Literature and Reference Materials

Parker Racor--Changing Filtation--FDRB583UK (PDF)
