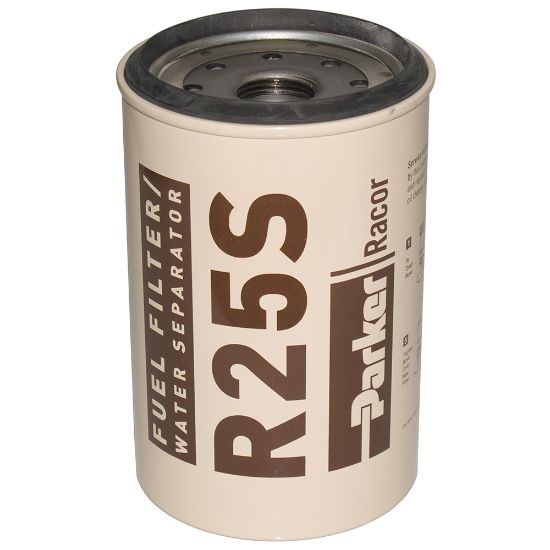

Parker R25S - Replacement Filter Elements – Racor Spin-on Series

Spin-on Series Replacement Filter Elements can be used in a wide range of Racor fuel filter / water separator housings. The elements utilize proprietary Aquabloc® engineered media, which provides excellent water removal and dirt-holding capabilities.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. R25S

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Specifications Met	No	Product Series	Diesel Spin-on FF/WS
Flow Direction	Inside-to-Outside	Micron Rating	98% : 4
Brand	Racor	Related Parts	Clear Bowl: RK 22350-02
Division	Engine Mobile Original Equipment Division	Connection Type	3.125" Female Bottom Threads
Outside Diameter	3.8" (97 mm)	Height	5.5" (140 mm)
Product Series	245R	Filter Element Type	2 Micron Aquabloc® Spin-on
Location	North America and EMEA regions	Thread Size	1"-14

Product resources

Literature and Reference Materials

Parker Racor--Changing Filtation--FDRB583UK (PDF)
