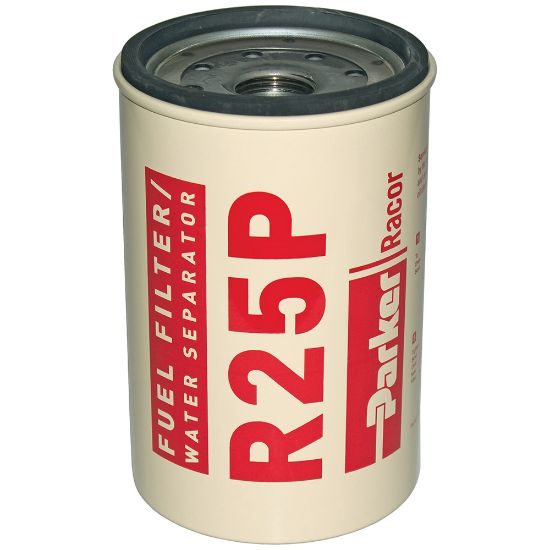

Parker R25P - Replacement Filter Elements – Racor Spin-on Series

Spin-on Series Replacement Filter Elements can be used in a wide range of Racor fuel filter / water separator housings. The elements utilize proprietary Aquabloc® engineered media, which provides excellent water removal and dirt-holding capabilities.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. R25P

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Engine Mobile Original Equipment Division	Related Parts	Clear Bowl: RK 22350-02
Brand	Racor	Specifications Met	No
Micron Rating	98% : 30	Product Series	Diesel Spin-on FF/WS
Flow Direction	Inside-to-Outside	Thread Size	1"-14
Filter Element Type	30 Micron Aquabloc® Spin-on	Location	North America and EMEA regions
Connection Type	3.125" Female Bottom Threads	Height	5.5" (140 mm)
Outside Diameter	3.8" (97 mm)	Product Series	245R

Product resources

Literature and Reference Materials

Parker Racor--Changing Filtation--FDRB583UK (PDF)
