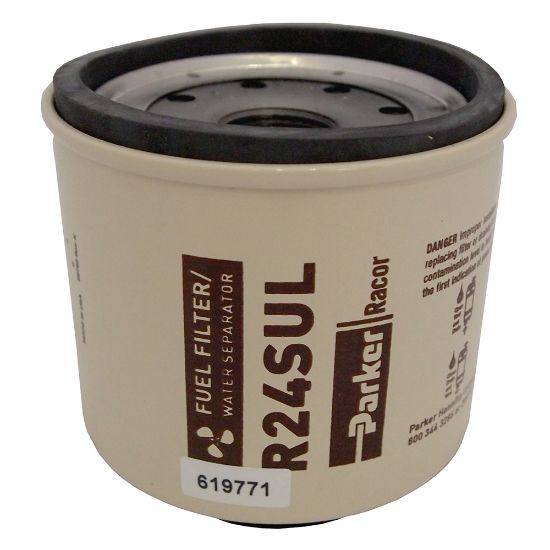

Parker R24S UL - Marine Replacement Filter Elements – Racor Marine Spin-on Series

Spin-on Series Marine Replacement Filter Elements utilize Racor’s proprietary Aquabloc® media to reliably remove dirt and water from fuel, thus providing maximum protection of inboard and outboard engines. UL-approved versions available.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. R24S UL

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Racor	Connection Type	1.25" Female Bottom Threads
Product Series	Marine Gasoline Spin-on FF/WS	Flow Direction	Inside-to-Outside
Filter Element Type	2 Micron Aquabloc® Spin-on	Division	Engine Mobile Original Equipment Division
Related Parts	None	Outside Diameter	3.8 in / 97 mm
Height	3.5 in / 89 mm	Micron Rating	98% @ 4 Micron
Series	220RMAM Center Thread Bowl	UL Certification	Yes

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety, Literature and Reference Materials

Racor EB00033 Marine Gasoline Spin-on Filters - Bowl Inspection (PDF)
