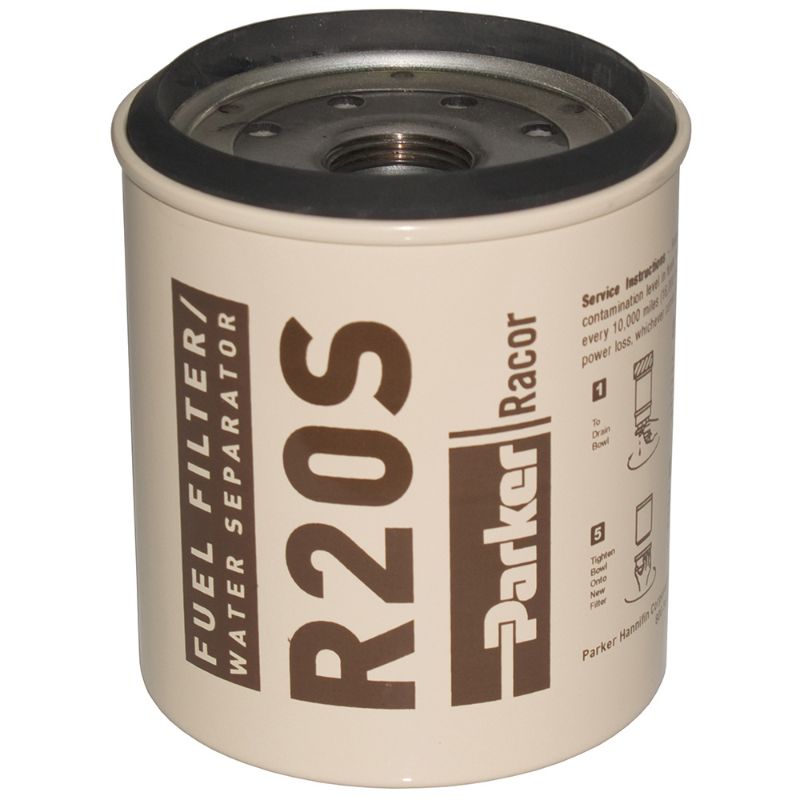

Parker R20S - Replacement Filter Elements – Racor Spin-on Series

Spin-on Series Replacement Filter Elements can be used in a wide range of Racor fuel filter / water separator housings. The elements utilize proprietary Aquabloc® engineered media, which provides excellent water removal and dirt-holding capabilities.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. R20S

$46.16/each

Products specifications

Attribute name	Attribute value
UOM	EA	Micron Rating	98% : 4
Related Parts	Clear Bowl: RK 22350-02	Specifications Met	No
Flow Direction	Inside-to-Outside	Brand	Racor
Product Series	Diesel Spin-on FF/WS	Division	Engine Mobile Original Equipment Division
Height	4.0" (102 mm)	Location	North America and EMEA regions
Connection Type	3.125" Female Bottom Threads	Outside Diameter	3.8" (97 mm)
Filter Element Type	2 Micron Aquabloc® Spin-on	Product Series	230R
Thread Size	1"-14

Product resources

Literature and Reference Materials

Parker Racor--Changing Filtation--FDRB583UK (PDF)
