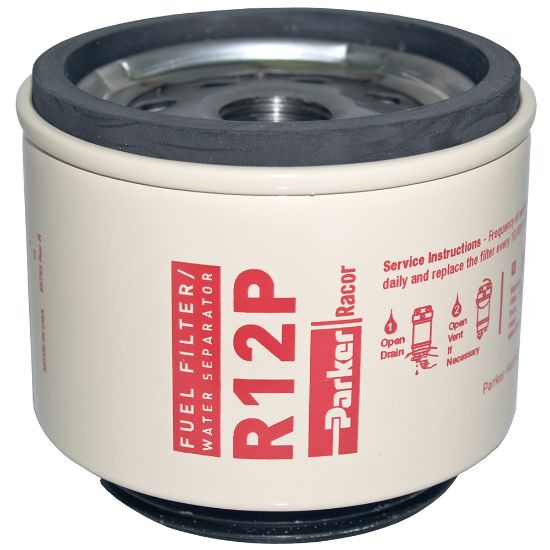

Parker R12P - Replacement Filter Elements – Racor Spin-on Series

Spin-on Series Replacement Filter Elements can be used in a wide range of Racor fuel filter / water separator housings. The elements utilize proprietary Aquabloc® engineered media, which provides excellent water removal and dirt-holding capabilities.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. R12P

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Flow Direction	Inside-to-Outside	Division	Engine Mobile Original Equipment Division
Brand	Racor	Micron Rating	98% : 30 MICRON
Related Parts	Clear Bowl: RK 10215	Product Series	Diesel Spin-on FF/WS
Specifications Met	No	Location	North America and EMEA regions
Filter Element Type	30 Micron Aquabloc® Spin-on	Thread Size	M18 x 1.5
Outside Diameter	3.0" (76 mm)	Height	2.4" (61 mm)
Product Series	120A, 140R	Connection Type	2.4" Male Bottom Threads

Product resources

Literature and Reference Materials

Parker Racor--Changing Filtation--FDRB583UK (PDF)
