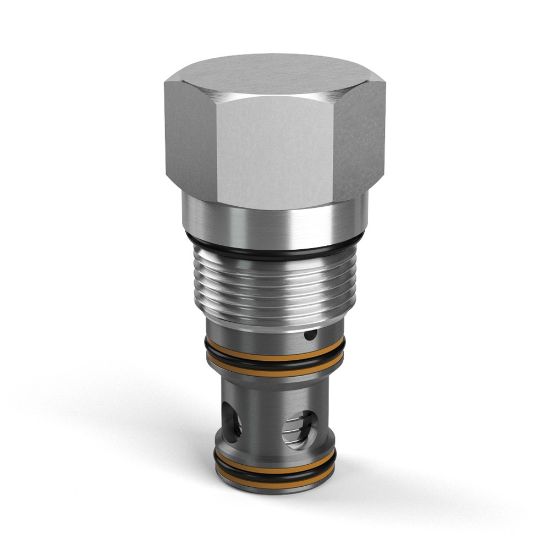

Parker R06F3-10.0N - Spool Type Logic Element

Parker’s spool type logic elements can be used for direction and pressure/flow control, and are available normally-open and normally-closed with internal or external pilots for pressures up to 420 bar (6000 psi) and flows up to 500 lpm (132 gpm).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. R06F3-10.0N

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Body Material	n/a
Division	Hydraulic Cartridge Systems Division	Vented	Internal
Function	Logic Valve	Actuation Type	Vent to Open
Flow Direction	Nose to Side (1-2)	Operation Type	Pilot Operated
Pilot Location	Internal	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Dampening Orifice Included	Yes	Minimum Operating Temperature	-30 °F
Cavity Size	C16-3S	Maximum Operating Pressure	420 bar
Division	Mobile Hydraulic Systems Division Europe	Maximum Inlet Pressure Rating	420 bar
Maximum Flow Rate	106 Gal/min	Installation Torque	100 Nm
Maximum Operating Temperature	+250 °F	Configuration	Normally Closed
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Operating Temperature	-30 to +250 °F	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Weight	0.84 lb	Switching Pressure	10 bar
Flow Rate	71 @ 100 PSI (7 BAR) Nominal Gal/min	Leak Rate	90 @ 1450 PSI (BAR) cm3/min
Seal Material	Nitrile	Configuration	Normally Closed
Flow Direction	Nose to Side (1-2)	Dampening Orifice Included	Yes
Switching Pressure	145 PSI, 10 BAR	Maximum Flow Rate	106 GAL/MIN, 400 L/MIN
