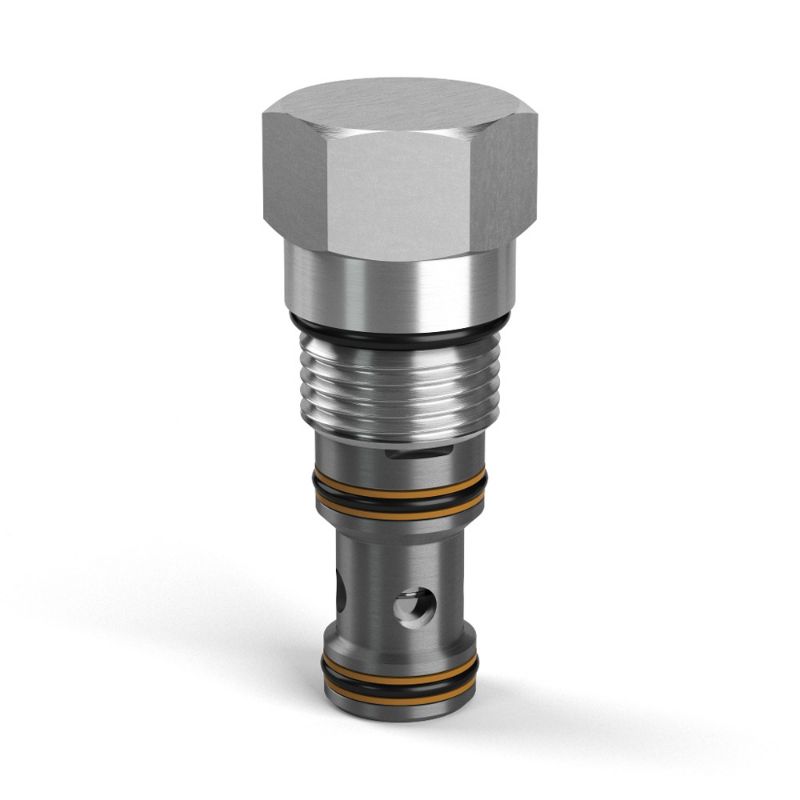

Parker R04E3-20.0N - Spool Type Logic Element

Parker’s spool type logic elements can be used for direction and pressure/flow control, and are available normally-open and normally-closed with internal or external pilots for pressures up to 420 bar (6000 psi) and flows up to 500 lpm (132 gpm).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. R04E3-20.0N

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Flow Rate	26 @ 100 PSI (7 BAR) Nominal Gal/min
Configuration	Normally Closed	Pilot Location	External
Leak Rate	50 @ 1450 PSI (BAR) cm3/min	Division	Mobile Hydraulic Systems Division Europe
Dampening Orifice Included	No	Flow Direction	Nose to Side (1-2)
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Valve Material	All parts steel. All operating parts hardened steel
Maximum Inlet Pressure Rating	6000 psi	Vented	Internal
Actuation Type	Pilot to Close	Division	Hydraulic Cartridge Systems Division
Weight	0.14 kg	Body Material	n/a
Seal Material	Nitrile	Operation Type	Pilot Operated
Cavity Size	C10-3S	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Minimum Operating Temperature	-34 °C	Operating Temperature	-30 to +250 °F
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Maximum Operating Pressure	6000 psi
Installation Torque	37 lb-ft	Maximum Operating Temperature	+250 °F
Switching Pressure	290 psi	Function	Logic Valve
Maximum Flow Rate	45 Gal/min	Seal Material	Nitrile
Configuration	Normally Closed	Maximum Flow Rate	45 GPM, 170 L/MIN
Switching Pressure	290 PSI, 20 BAR	Flow Direction	Nose to Side (1-2)
Dampening Orifice Included	No
