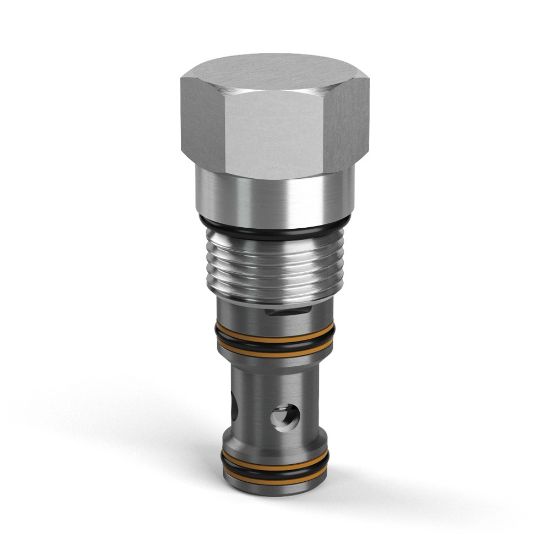

Parker R04E3-10.0N - Spool Type Logic Element

Parker’s spool type logic elements can be used for direction and pressure/flow control, and are available normally-open and normally-closed with internal or external pilots for pressures up to 420 bar (6000 psi) and flows up to 500 lpm (132 gpm).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. R04E3-10.0N

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Inlet Pressure Rating	6000 psi	Dampening Orifice Included	No
Weight	0.14 kg	Body Material	n/a
Valve Material	All parts steel. All operating parts hardened steel	Actuation Type	Pilot to Close
Installation Torque	50 Nm	Vented	Internal
Operation Type	Pilot Operated	Seal Material	Nitrile
Division	Hydraulic Cartridge Systems Division	Maximum Operating Temperature	+121 °C
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Cavity Size	C10-3S
Maximum Operating Pressure	6000 psi	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Minimum Operating Temperature	-34 °C	Operating Temperature	-30 to +250 °F
Maximum Flow Rate	45 Gal/min	Configuration	Normally Closed
Switching Pressure	10 bar	Flow Rate	26 @ 100 PSI (7 BAR) Nominal Gal/min
Function	Logic Valve	Pilot Location	External
Division	Mobile Hydraulic Systems Division Europe	Leak Rate	50 @ 1450 PSI (BAR) cm3/min
Flow Direction	Nose to Side (1-2)	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Configuration	Normally Closed	Maximum Flow Rate	45 GPM, 170 L/MIN
Flow Direction	Nose to Side (1-2)	Dampening Orifice Included	No
Switching Pressure	145 PSI, 10 BAR	Seal Material	Nitrile
