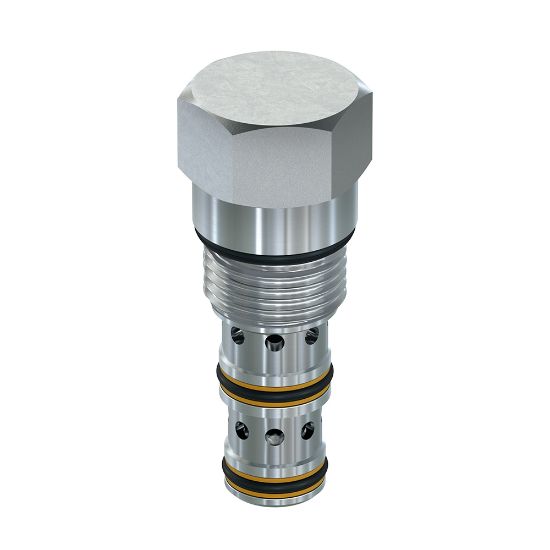

Parker R04D3-5.0N - 2 Way Pilot Operated Directional Control Valves

A pilot-operated, cartridge style screw-in hydraulic directional valve used in two way circuits with remote pilot actuation. Available in both normally-open and normally-closed orientation.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. R04D3-5.0N

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	6000	Actuation Type	Pilot to Open
Cavity Size	C10-3	Leak Rate	100 @ 1450 PSI (100 BAR)
Division	Hydraulic Valve Systems Division	Configuration	Normally Closed
Switching Pressure	73	Pilot Location	External
Division	Mobile Hydraulic Systems Division Europe	Sealed Pilot Included	No
Standard Flow Rate Setting	16	Operating Temperature	-30 to +250
Drain Option	Internal	Installation Torque	37
Flow Direction	2-3 or 3-2	Function	Diverter
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Valve Material	All parts steel. All operating parts hardened steel
Maximum Operating Temperature	+250	Maximum Flow Rate	26
Weight	0.33	Body Material	n/a
Minimum Operating Temperature	-30	Seal Material	Nitrile
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Operation Type	Pilot Operated
Flow Rate	26	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Inlet Pressure Rating	6000	Sealed Pilot Included	No
Seal Material	Nitrile	Switching Pressure	73 PSI, 5 BAR
Flow Rate	26 GAL/MIN, 100 L/MIN	Configuration	Normally Closed
