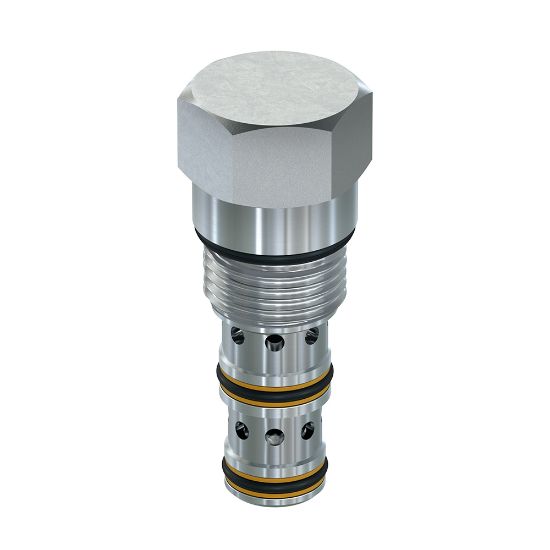

Parker R04C3-10.0VS - 2 Way Pilot Operated Directional Control Valves

A pilot-operated, cartridge style screw-in hydraulic directional valve used in two way circuits with remote pilot actuation. Available in both normally-open and normally-closed orientation.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. R04C3-10.0VS

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Configuration	Normally Open	Sealed Pilot Included	Yes
Function	Diverter	Valve Material	All parts steel. All operating parts hardened steel
Leak Rate	50 @ 1450 PSI (100 BAR) cm3/min	Body Material	n/a
Actuation Type	Pilot to Close	Standard Flow Rate Setting	10 Gal/min
Switching Pressure	145 psi	Seal Material	Fluorocarbon
Division	Hydraulic Cartridge Systems Division	Operation Type	Pilot Operated
Flow Rate	80 L/min	Maximum Flow Rate	80 L/min
Maximum Operating Pressure	6000 psi	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Weight	0.15 kg
Installation Torque	37 lb-ft	Cavity Size	C10-3
Pilot Location	External	Maximum Inlet Pressure Rating	420 bar
Division	Mobile Hydraulic Systems Division Europe	Flow Direction	2-3 or 3-2
Maximum Operating Temperature	+204 °C	Minimum Operating Temperature	-15 °F
Operating Temperature	-15 to +400 °F	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Drain Option	Internal	Flow Rate	21 GAL/MIN, 80 L/MIN
Seal Material	Fluorocarbon	Configuration	Normally Open
Switching Pressure	145 PSI, 10 BAR	Sealed Pilot Included	Yes
