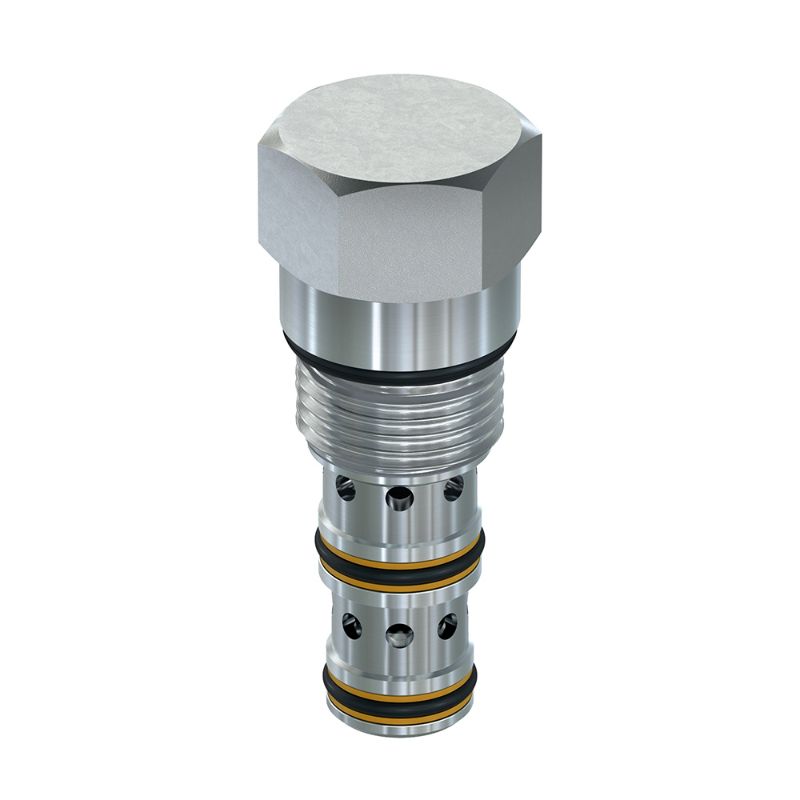

Parker R04C3-10.0V - 2 Way Pilot Operated Directional Control Valves

A pilot-operated, cartridge style screw-in hydraulic directional valve used in two way circuits with remote pilot actuation. Available in both normally-open and normally-closed orientation.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. R04C3-10.0V

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Operating Temperature	+400 °F	Weight	0.15 kg
Sealed Pilot Included	No	Pilot Location	External
Division	Mobile Hydraulic Systems Division Europe	Drain Option	Internal
Minimum Operating Temperature	-26 °C	Flow Direction	2-3 or 3-2
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Maximum Inlet Pressure Rating	6000 psi
Configuration	Normally Open	Function	Diverter
Leak Rate	50 @ 1450 PSI (100 BAR) cm3/min	Valve Material	All parts steel. All operating parts hardened steel
Standard Flow Rate Setting	10 Gal/min	Body Material	n/a
Seal Material	Fluorocarbon	Switching Pressure	145 psi
Maximum Flow Rate	80 L/min	Division	Hydraulic Cartridge Systems Division
Actuation Type	Pilot to Close	Operating Temperature	-26 to +204 °C
Installation Torque	50 Nm	Operation Type	Pilot Operated
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Flow Rate	80 L/min	Cavity Size	C10-3
Maximum Operating Pressure	6000 psi	Sealed Pilot Included	No
Flow Rate	21 GAL/MIN, 80 L/MIN	Seal Material	Fluorocarbon
Configuration	Normally Open	Switching Pressure	145 PSI, 10 BAR
