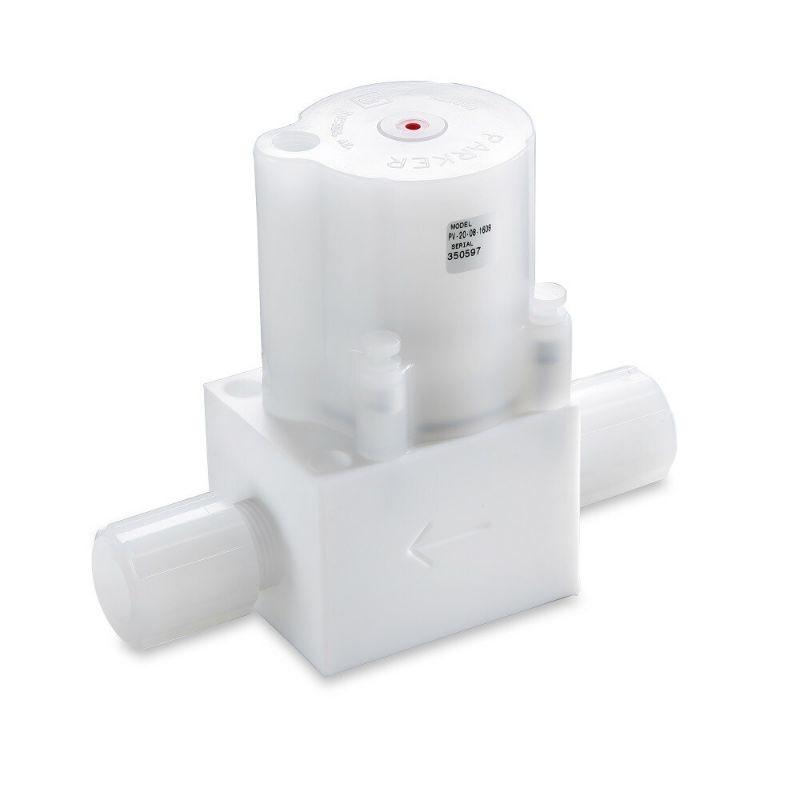

Parker PV-20-04-1604 - UHP PTFE Air-operated Slurry Valve (up to 1 inch) – PV-20 Series

The PV-20 Series PTFE Slurry Valve offers exceptional sealing of aggressive chemicals and abrasive slurry media. The valve minimizes particle generation and is designed for use in semiconductor manufacturing and clean-area applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PV-20-04-1604

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Flow Coefficient	Kv 2.8	Minimum Fluid Temperature	-17
Actuation Pressure	60 psig (4.1 bar) - 80 psig (5.5 bar)	Division	Veriflo Division
Pressure Rating	27" HG vacuum (913 mbar) - 80 psig (5.5 bar) (1/4" Orifice) 27" HG vacuum (913 nbar) - 100 psig (7 bar) (1/2" Orifice) (1" Orifice)	Maximum Fluid Temperature	130
Port 2 Size	1/4" Parflare	Wetted Material	PTFE, Modified PTFE
Minimum Ambient Temperature	-17	Non-Wetted Material	PVDF, Viton, PTFE Coated SS Spring
Flow Rate	Cv .20	Maximum Ambient Temperature	66
Actuation	Normally Closed	Body Size (inch)	1/4"
Port Connection 1 (inch)	1/4" Parflare	Nut Material	PVDF
