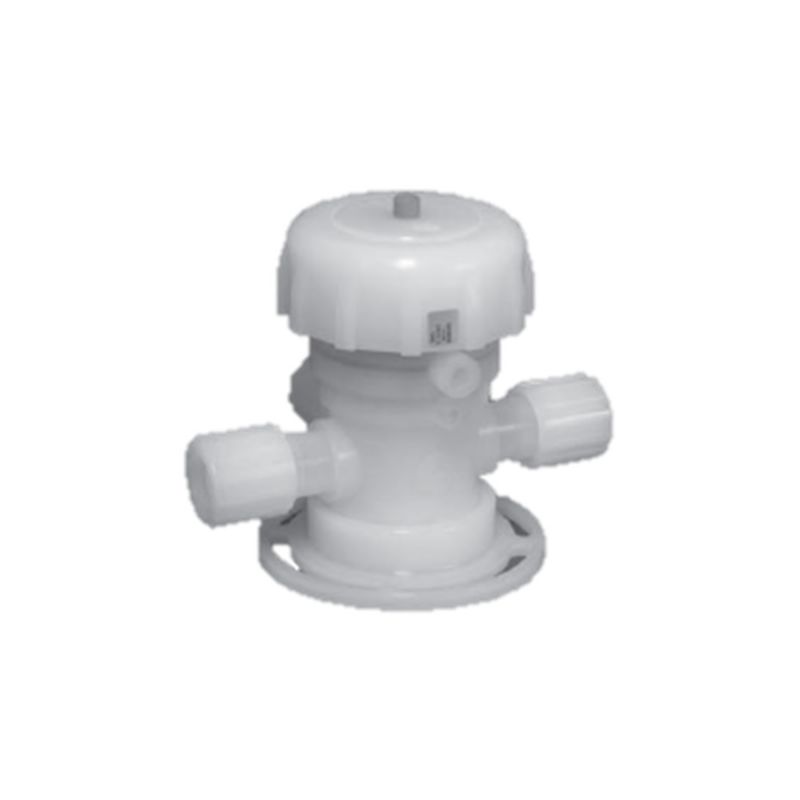

Parker PV-16-3612-01 - UHP PFA Air-operated Diaphragm (3/4 inch) 3 Way Valve – PV-16 Series

Note: This product is no longer available - please contact us for further assistance.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PV-16-3612-01

Products specifications

Attribute name	Attribute value
Non-Wetted Material	PVDF, Viton, PTFE Coated SS Spring	Flow Rate	Cv 5.4
Maximum Ambient Temperature	66	Actuation Pressure	60 psig (4.1 bar) - 120 psig (8.3 bar)
Flow Coefficient	Kv 77.0	Pressure Rating	0 - 120 psig (8.3 bar)
Minimum Fluid Temperature	-17	Length	6.48" (164.59 mm)
Port 3 Size	3/4" Parflare Long	Wetted Material	PFA, Modified PTFE
Maximum Fluid Temperature	130	Division	Veriflo Division
Minimum Ambient Temperature	-17	Port 2 Size	3/4" Parflare Long
Configuration	3 Way (Com, NC, NO)	Port Connection 1 (inch)	3/4" Parflare Long
Nut Material	PVDF
