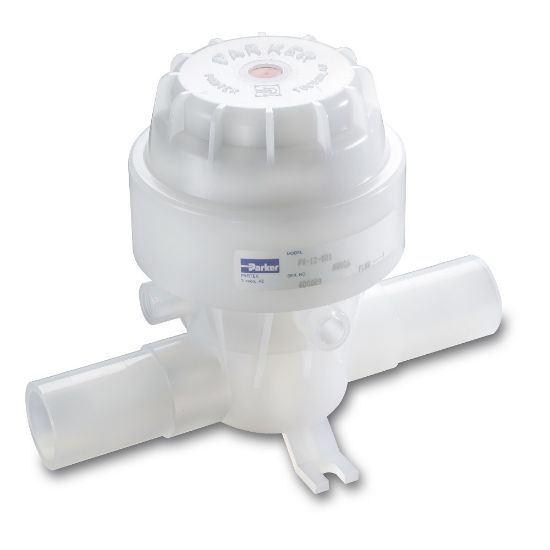

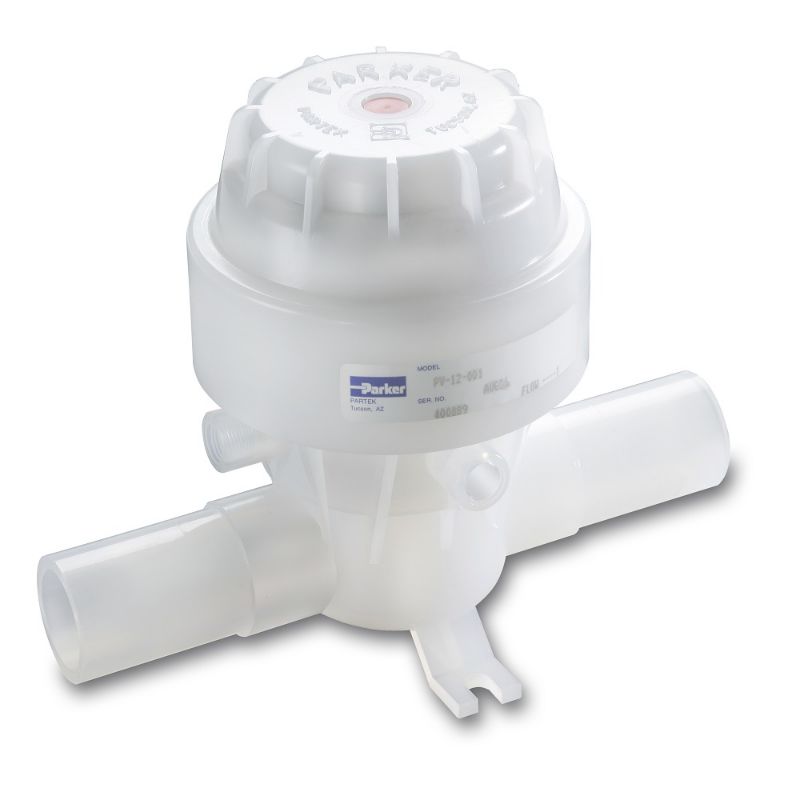

Parker PV-12-002-T - UHP PFA Air-operated Diaphragm (1 inch) 2 Way Valve – PV-12 Series

The PV-12 Series PFA Diaphragm Valve offers high leak integrity and exceptional corrosion resistance. It is ideally suited for use in ultra-high purity (UHP) and aggressive fluid applications. Available in 2-way and 3-way configurations.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PV-12-002-T

Products specifications

Attribute name	Attribute value
Non-Wetted Material	PFA, PVDF, Viton Seals, PTFE Coated SS Springs	Pressure Rating	27" HG vacuum (913 mbar) to 100 psig (7 bar) (Forward), 80 psig (5.5 bar) with 100 psig (3.4 bar) inlet pressure, 100 psig (7 bar) with 60 psig (4.2 bar) inlet pressure (Backward)
Maximum Ambient Temperature	66	Flow Coefficient	Kv 189.9
Flow Rate	Cv 13.3	Minimum Fluid Temperature	-17
Port 2 Size	1" Parflare	Wetted Material	PFA, Modified PTFE
Maximum Fluid Temperature	130	Division	Veriflo Division
Actuation Pressure	60psig (4.2 bar) to 100 psig (7 bar)	Minimum Ambient Temperature	-17
Port Connection 1 (inch)	1" Parflare	Nut Material	PFA
Actuation	Normally Closed
