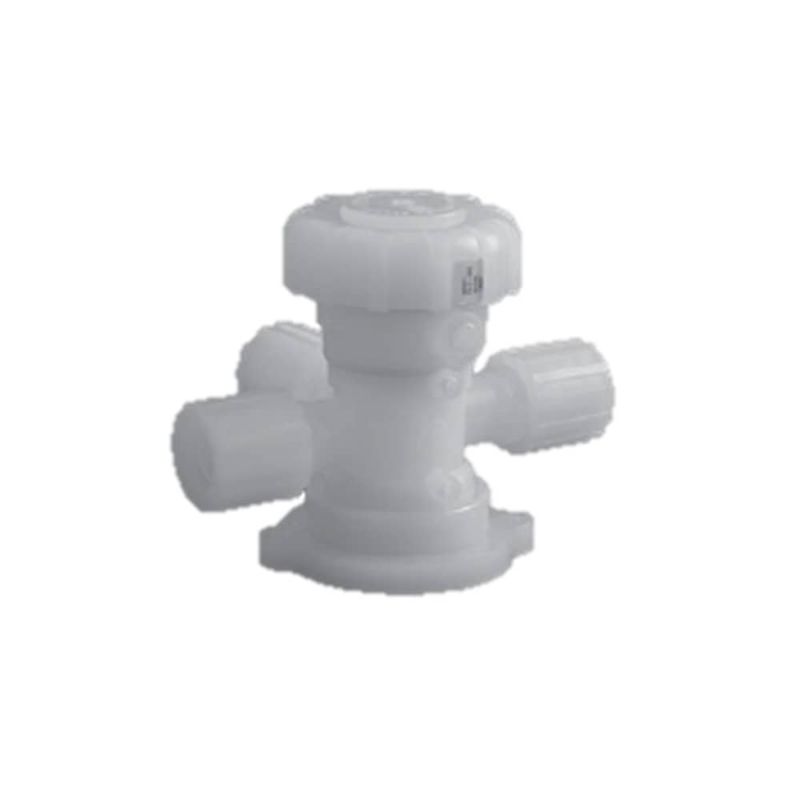

Parker PV-11-025 - UHP PFA Air-operated Diaphragm (1/2 inch) 3 Way Valve – PV-11 Series

The PV-11 Series PFA Valve offers high leak integrity and excellent resistance to corrosion. It is available in 2-way and 3-way configurations and is designed for ultra-high purity (UHP) and aggressive fluid applications (up to 100 psig).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PV-11-025

$0.01

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Port 3 Size	1/2" FNPT inch
Minimum Ambient Temperature	-17 °C	Port 2 Size	1/2" FNPT inch
Actuation Pressure	60 psig (4.2 bar) to 100 psig (7 bar)	Flow Rate	Cv 2.8 Cv
Pressure Rating	xyz	Wetted Material	PFA, Modified PTFE
Division	Veriflo Division	Minimum Fluid Temperature	-17 °C
Maximum Ambient Temperature	150 °F	Non-Wetted Material	PFA, PVDF, Viton Seals, PTFE Coated SS Springs
Maximum Fluid Temperature	266 °F	Flow Coefficient	Kv 40.0 L/min
Nut Material	N/A	Port Connection 1 (inch)	1/2" FNPT
Mounting Option	N/A
