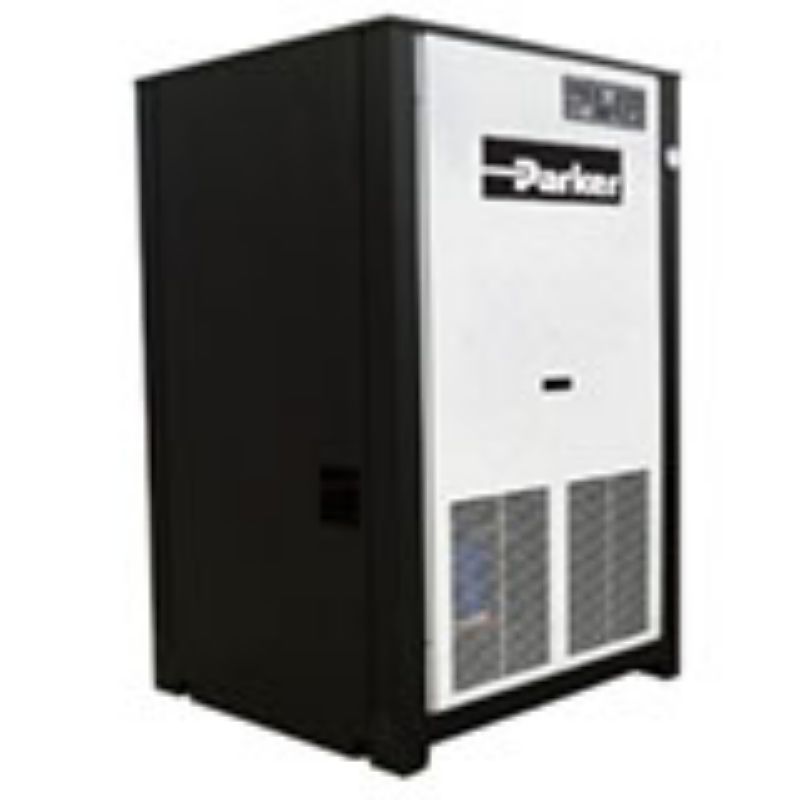

Picture of Parker PTM01000-A2-D1 - Thermal Mass Cycling Refrigerated Compressed Air Dryer - PTM Series

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker PTM01000-A2-D1 - Thermal Mass Cycling Refrigerated Compressed Air Dryer - PTM Series

Note: This product is no longer available - please refer to the "Product Support" or "Recommended products" section of this page for details on any alternative products, or contact us for further assistance
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. PTM01000-A2-D1
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Depth37Maximum Operating Pressure200
Refrigerant TypeR404ACompatible After Filter Element6CU51-280 X 1
Maximum Ambient Temperature115Height71
Maximum Operating Temperature140DivisionIndustrial Gas Filtration and Generation Division
Minimum Operating Temperature41Compatible PrefilterJD1300K-7CPY
BrandParkerWidth49
Minimum Operating Pressure50Product TypeThermal Mass Cycling Refrigerated Compressed Air Dryer, Air Cooled
Weight1174ApplicationIndustrial
Minimum Ambient Temperature41Maximum Flow Rate1000
Compatible After FilterHF3-801-6CU-DGMaximum Inlet Pressure Rating100
Compatible Prefilter ElementJF1300K-7CPKPre-Installed Optional AccessoriesDryer + Prefilter (shipped loose)
Connection Type3" NPTInstalled Condensate DrainZero Air Loss Drain
Pressure Dew Point (F)39Maximum Flow Rate (cfm)1000
Electrical Requirements230V/1Ph/60Hz
