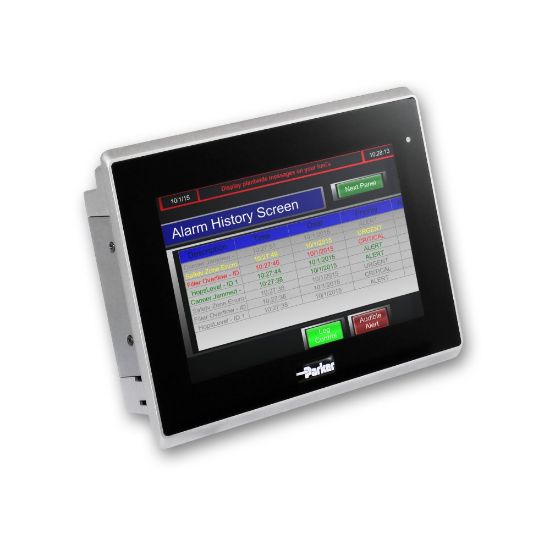

Parker PTL-007-1R1-15 - PT Parker PAC Terminal

Note: This product is no longer available - please contact us for further assistance.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PTL-007-1R1-15

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Interface Type	Analog Resistive Touchscreen	Product Type	Thin Client HMI
CPU	1 GHz Freescale iMX6 AMD	System Memory	-
Inputs/Outputs	2x USB 2.0	Client Data Storage	4 GB eMMC
Ingress Protection Rating	IP65 (front bezel)	Operating System	Android
Division	Electronic Motion and Controls Division	Software	Parker Remote Manager
Operating Temperature	0 to 50	Backlight Life	40000
Display Size	7 inch Touchscreen	Operating Humidity	10 to 90 % @ 40°C (non-condensing)
Display Type	-	Input Voltage	12 to 24
Resolution	800 x 480	Specifications Met	Class I Div 2
Display Size	7" Touchscreen	Certificates	Class I Div 2, CE, UL/cUL, IEC/EN61010, FCC Class A, RoHS, REACH
Cover Material	Plastic
