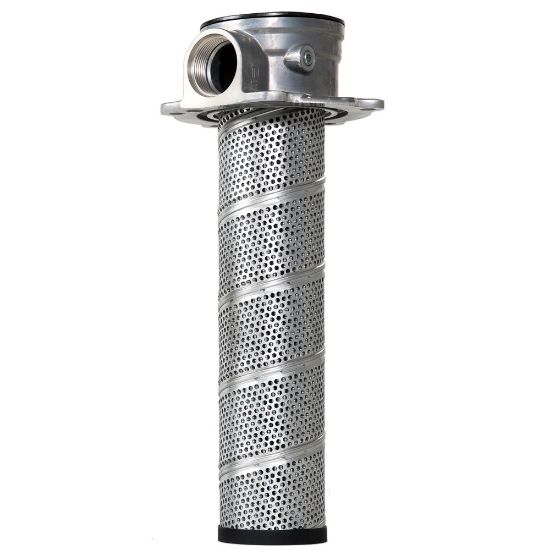

Parker PT4305QBPGS16W - Low Pressure Tank Top Filters PT Series

Parker’s PT Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/180 LPM depending on viscosity.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PT4305QBPGS16W

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Indicator Pressure Setting	Steel Weld Ring	Flow Rate	208.2 L/min
Indicator Type	Plugged ports	Maximum Operating Temperature	107.0 °C
Compatible Element	936877	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Seal Material	Nitrile	Bypass Valve Pressure Rating	25.0 psid
Mounting Style	Tank Mounted	Options	Tank Mounted
Filter Element Type	05Q Microglass	For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids
Weight	2.67 lb	Pressure Rating	15 psi
Housing Material	Aluminum	Port Connection Type	SAE-16
Filter Element Type	05Q Microglass	Bypass Valve Pressure Rating	25 psid (1.7 bar)
Seal Material	Nitrile	Options	Steel weld ring
Indicator Type	Plugged Ports	Flow Rate	55 gpm (208.2 lpm)
