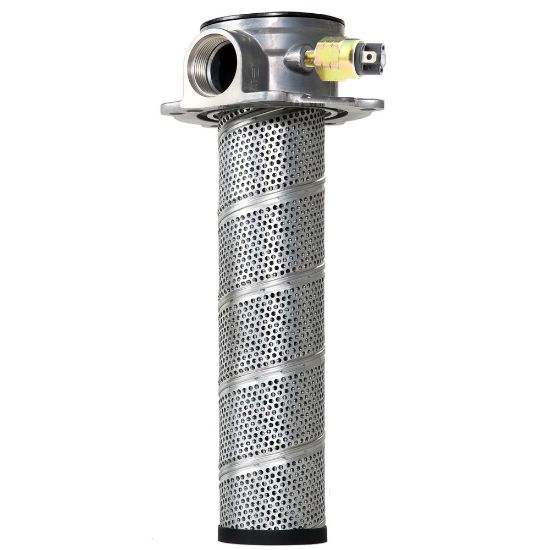

Parker PT4302QBSGS16W - Low Pressure Tank Top Filters PT Series

Parker’s PT Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/180 LPM depending on viscosity.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PT4302QBSGS16W

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Operating Temperature	225.0 °F	Indicator Type	Pressure Switch
Flow Rate	55.0 Gal/min	Filter Element Type	02Q Microglass
For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Weight	2.67 lb
Housing Material	Aluminum	Indicator Pressure Setting	Steel Weld Ring
Compatible Element	936876	Bypass Valve Pressure Rating	1.7 bar
Pressure Rating	10.3 bar	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Seal Material	Nitrile	Options	Tank Mounted
Mounting Style	Tank Mounted	Options	Steel weld ring
Seal Material	Nitrile	Flow Rate	55 gpm (208.2 lpm)
Port Connection Type	SAE-16	Indicator Type	Pressure Switch
Filter Element Type	02Q Microglass	Bypass Valve Pressure Rating	25 psid (1.7 bar)
