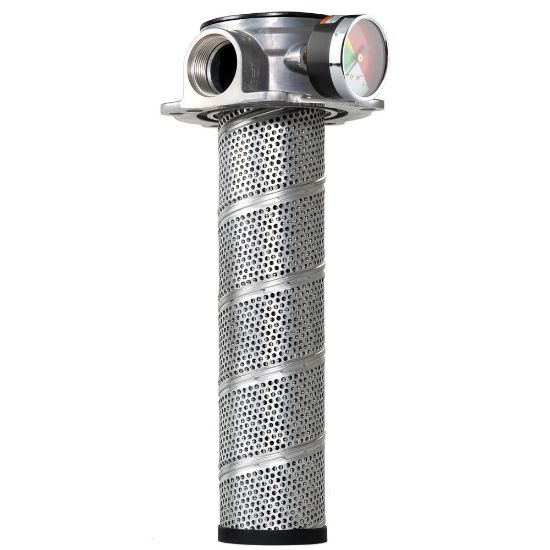

Parker PT4302QBGGS16W - Low Pressure Tank Top Filters PT Series

Parker’s PT Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/180 LPM depending on viscosity.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PT4302QBGGS16W

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Pressure Rating	10.3 bar	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Seal Material	Nitrile	Weight	1.21 kg
Options	Tank Mounted	Bypass Valve Pressure Rating	25.0 psid
Mounting Style	Tank Mounted	Maximum Operating Temperature	225.0 °F
Filter Element Type	02Q Microglass	Indicator Type	Pressure gauge, 25 psi
Housing Material	Aluminum	For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids
Indicator Pressure Setting	Steel Weld Ring	Compatible Element	936876
Flow Rate	208.2 L/min	Options	Steel weld ring
Indicator Type	Pressure gauge, 25 psi	Seal Material	Nitrile
Flow Rate	55 gpm (208.2 lpm)	Port Connection Type	SAE-16
Filter Element Type	02Q Microglass	Bypass Valve Pressure Rating	25 psid (1.7 bar)
