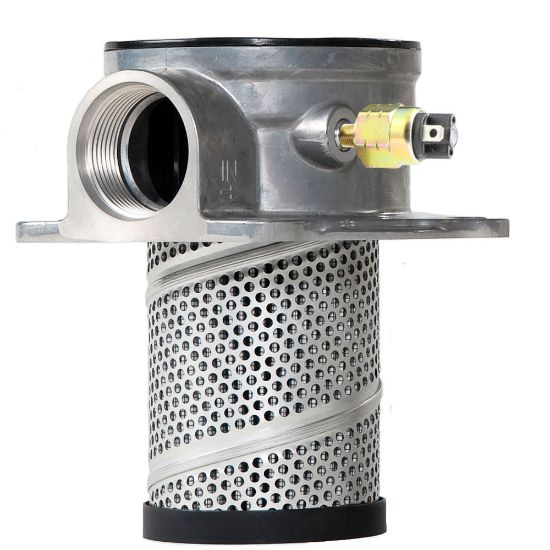

Parker PT4210QBSGS161 - Low Pressure Tank Top Filters PT Series

Parker’s PT Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/180 LPM depending on viscosity.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PT4210QBSGS161

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Bypass Valve Pressure Rating	25.0 psid	Mounting Style	Tank Mounted
Maximum Operating Temperature	225.0 °F	Indicator Type	Pressure Switch
Indicator Pressure Setting	No Indicator	Weight	0.98 kg
For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Filter Element Type	10Q Microglass
Housing Material	Aluminum	Compatible Element	936748
Pressure Rating	10.3 bar	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Seal Material	Nitrile	Flow Rate	189.3 L/min
Options	Tank Mounted	Filter Element Type	10Q Microglass
Seal Material	Nitrile	Port Connection Type	SAE-16
Indicator Type	Pressure Switch	Options	None
Bypass Valve Pressure Rating	25 psid (1.7 bar)	Flow Rate	50 gpm (189.3 lpm)

Product resources

Literature and Reference Materials
